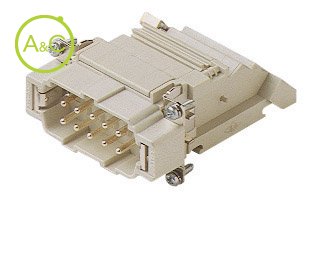

Terminal block inserts, 10P + PE, spring terminal connection

  • Male inserts with male contacts
  • Silver plated contacts
Download product sheet

Side-mounting

  • Left
  • Right
Article Number CTSEM 10 L*
Pollution Degree 3
Number Of Poles 10
Connection Type Spring clamp connection
Contact Type Male
Remark Only for bulkhead mounted housing and BIG HOODS
Extra Information Modular version
With protective conductor
With wire protection
Ambient Lower Temperature -40 °C
Ambient Upper Temperature 125 °C
Min. Cross Section Without End Sleeve 0.75 mm²
Max. Cross Section Without End Sleeve 2.5 mm²
Required Housing C-type size 57.27
C7 size 57.27
Simplex size 57.27
V-Type size 57.27
BIG size 57.27
T-type size 57.27
T-type/W size 57.27
T-type/H size 57.27
T-type/C size 57.27
W-Type size 57.27
EMC size 57.27
Central Lever size 57.27
LS-type size 57.27
Diameter Male Contact 2.5 mm
Inflammability Class Of Insulation Material Acc. With Ul94 V0
Material Insert Thermoplastic
Material Contact Brass
Plating Of Contact Silver
Max. Rated Current 16 A
Nominal Rated Voltage 500 V
Over Voltage Category III
Rated Surge Voltage 6 kV
Eigenschappen verschillen tussen varianten en subvarianten
Accessoires
CT APE
Support for rail mounting DIN EN 60715
CRBF
Coupling screws
CR 20*
Single code pins for 6 codings
CR 20 D*
Single code pins for 6 codings
CRM*
Male double coding and guide pins, for 16 codes
CRM D*
Male double coding and guide pins, for 16 codes
CRF*
Female double coding and guide pins, for 16 codes
CRF D*
Female double coding and guide pins, for 16 codes
CRM
Male coding and guide pin, for 72 codes
CRM D
Male coding and guide pin, for 72 codes
CRF
Female coding and guide pin, for 72 codes
CRF D
Female coding and guide pin, for 72 codes
CR 72
Single coding and guide pin, for 72 codes
CR 72 D
Single coding and guide pin, for 72 codes
