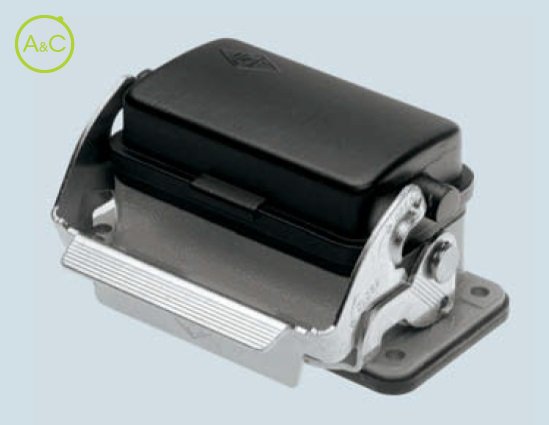

Bulkhead mounting housings

  • With single lever in stainless steel and cover in plastic
  • Aluminium
Download product sheet
  • General
Article Number CVI 10 LSP
Protection Degree IP65
Material Housing Aluminium
Height 45 mm
Length 95.5
Extra Information Corrosion resistant
UV resistant
With hinged lid
With interlocking device
Coating Housing With powder coating
Required Inserts CDD 42 P + PE; CDS 18 P + PE; CSH 10 P + PE; CNE-CSE 10 P + PE; CCE 10 P + PE; CSS 10 P + PE; CT-CTSE 10 P + PE; CQE 18 P + PE; CMCE 3+2 P + PE; CMSH 3+2 P + PE; CX 8/24 P + PE; Mixo 3 modules; CDSH 18 P + PE
Locking Mechanism Single locking lever
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed below
Width 45.5 mm
Eigenschappen verschillen tussen varianten en subvarianten
