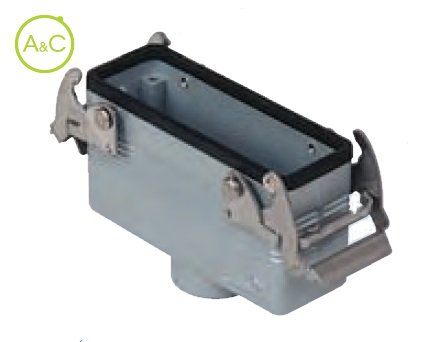

Hoods, top entry

  • With gasket, with 2 levers in stainless steel
  • Aluminium, 1xPG16
Download product sheet
  • General
Article Number CVV 10 G
Protection Degree IP67
Material Housing Aluminium
Height 63.5 mm
Length 122
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CDD 42 P + PE; CDS 18 P + PE; CSH 10 P + PE; CNE-CSE 10 P + PE; CCE 10 P + PE; CSS 10 P + PE; CQE 18 P + PE; CMCE 3+2 P + PE; CMSH 3+2 P + PE; CX 8/24 P + PE; Mixo 3 modules; CDSH 18 P + PE
Locking Mechanism Double locking levers
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Top entry
Width 57 mm
Eigenschappen verschillen tussen varianten en subvarianten
