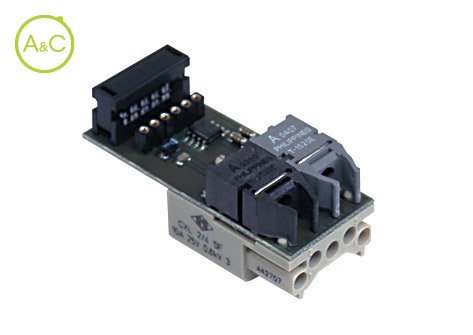

Inserts 2 pole fibre optics + 4 poles, crimp connections

  • For fixed enclosures, complete with electro-optical interface
  • Socket inserts for female contacts
Download product sheet
  • General
Article Number CXL 2/4 SF*
Pollution Degree 3
Number Of Poles 4
Contact Type Female
Remark Fitted with IDC connector for TTL to bus connection ribbon cable
Required Crimp Contacts CDFA 0.3, CDFA 0.5, CDFA 0.7, CDFA 1.0, CDFA 1.5, CDFA 2.5, CDFD 0.3, CDFD 0.5, CDFD 0.7, CDFD 1.0, CDFD 1.5, CDFD 2.5
Extra Information Contact insert without contacts
With protective conductor
Ambient Lower Temperature -40 °C
Ambient Upper Temperature 70 °C
Diameter Male Contact 1.6 mm
Inflammability Class Of Insulation Material Acc. With Ul94 V0
Material Insert Thermoplastic
Max. Rated Current 10 A
Nominal Rated Voltage 25 V
Over Voltage Category II
Rated Surge Voltage 0.8 kV
Eigenschappen verschillen tussen varianten en subvarianten
