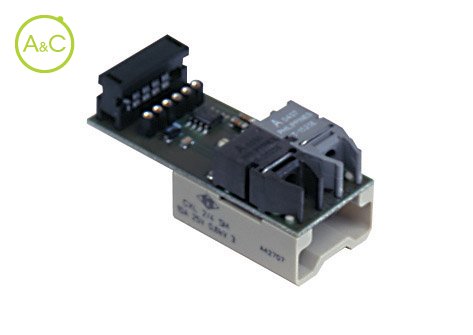

Inserts 2 pole fibre optics + 4 poles, crimp connections

For fixed enclosures, complete with electro-optical interface
Plug inserts for male contacts

CXL 2/4 SM

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

General

Article Number	CXL 2/4 SM*
Pollution Degree	3
Number Of Poles	4
Contact Type	Male
Remark	Fitted with IDC connector for TTL to bus connection ribbon cable
Required Crimp Contacts	CDMA 0.3, CDMA 0.5, CDMA 0.7, CDMA 1.0, CDMA 1.5, CDMA 2.5, CDMD 0.3, CDMD 0.5, CDMD 0.7, CDMD 1.0, CDMD 1.5, CDMD 2.5
Extra Information	Contact insert without contacts With protective conductor
Ambient Lower Temperature	-40 °C
Ambient Upper Temperature	70 °C
Diameter Male Contact	1.6 mm
Inflammability Class Of Insulation Material Acc. With Ul94	V0
Material Insert	Thermoplastic
Max. Rated Current	10 A
Nominal Rated Voltage	25 V
Over Voltage Category	II
Rated Surge Voltage	0.8 kV

Eigenschappen verschillen tussen varianten en subvarianten
