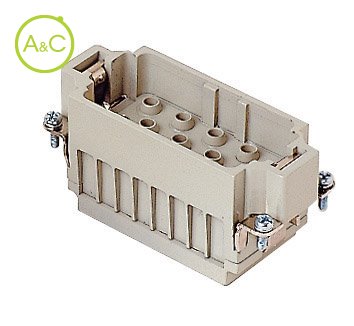

Inserts, 12 +2P + PE, Crimp connections

  • Male inserts for male contacts
Download product sheet
  • General
Article Number CXM 12/2
Pollution Degree 3
Number Of Poles 12 + 2
Connection Type Crimp connection
Contact Type Male
Required Crimp Contacts CDMA 0.3, CDMA 0.5, CDMA 0.7, CDMA 1.0, CDMA 1.5, CDMA 2.5, CDMD 0.3, CDMD 0.5, CDMD 0.7, CDMD 1.0, CDMD 1.5, CDMD 2.5, CDM2D 0.3, CDM2D 0.5, CDM2D 0.7, CDM2D 1.0, CDM2D 1.5, CDM2D 2.5, CDMJD 0.3, CDMJD 0.5, CDMJD 0.7, CDMJD 1.0, CDMJD 1.5, CDMJD 2.5, CXMA 1.5, CXMA 2.5, CXMA 4.0, CXMA 6.0
Extra Information Contact insert without contacts
Ambient Lower Temperature -40 °C
Ambient Upper Temperature 125 °C
Required Housing C-type size 77.27
C7 size 77.27
Simplex size 77.27
V-type size 77.27
BIG size 77.27
T-type size 77.27
T-type/W size 77.27
T-type/H size 77.27
T-type/C size 77.27
W-type size 77.27
EMC size 77.27
Central Lever size 77.27
High protection IP68
LS-type size 77.27
COB size 77.27
Diameter Male Contact 12P: 4 mm 2P: 1,6 mm
Inflammability Class Of Insulation Material Acc. With Ul94 V0
Material Insert Thermoplastic
Max. Rated Current 12P: 40 A 2P 10 A
Nominal Rated Voltage 12P: 690 V 2P: 160 V
Over Voltage Category IV
Rated Surge Voltage 12P: 8 kV 2P: 2.5 kV
Eigenschappen verschillen tussen varianten en subvarianten
Accessoires
CR VPTG
Screws for second earth terminal
