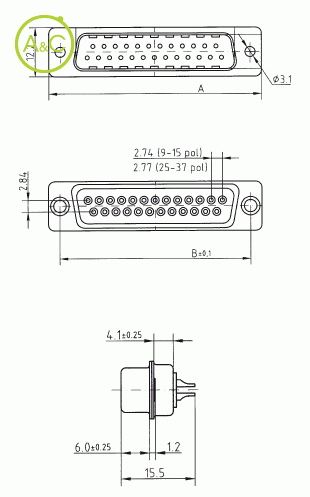

Filter connectors with solder pot terminal

Download product sheet

Number Of Poles

  • 9
  • 15
  • 25
  • 37
Article Number F 02 09 151 G3T F 02 09 161 G3T
Number Of Contacts 9 9
Upper Temperature +85 °C +85 °C
Lower Temperature -25 °C -25 °C
Rated Voltage 100 100
Insulation Resistance 1 MΩ 1 MΩ
Extra Information With UNC 4-40 thread available With UNC 4-40 thread available
Current Rating Max. 5 Max. 5
Gender Male Female
Test Voltage U Eff 200 200
Quality Class Class 3 = 50 mating cycles Class 3 = 50 mating cycles
Capacitor Values**** 01 = 2000 pF 02= 1000 pF 03= 500 pF 04= 250 pF 05= 120 pF 06= 43 pF 07= 22 pF 08= 15 pF 09 = 2 pF (available for non-filters pins) 10 = customized types 01 = 2000 pF 02= 1000 pF 03= 500 pF 04= 250 pF 05= 120 pF 06= 43 pF 07= 22 pF 08= 15 pF 09 = 2 pF (available for non-filters pins) 10 = customized types
Remark **** For another capacitor value replace the 02 in the article number by the number 01,03,04,05,06,07,08,09 or 10 (on request) For another capacitor value replace the 02 in the article number by the number 01,03,04,05,06,07,08,09 or 10 (on request)
Eigenschappen verschillen tussen varianten en subvarianten
