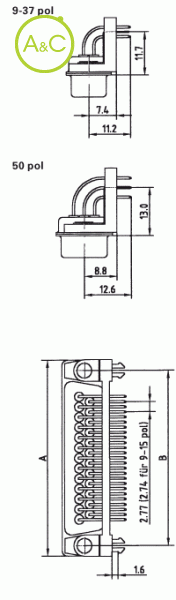

Filter connectors dip solder 90°

  • With grouding bracket, grounding clip and UNC 4-40 thread
Download product sheet

Number Of Poles

  • 9
  • 15
  • 25
  • 37
  • 50
Article Number F 02 09 56 G.R4B F 02 09 66 G.R4B
Number Of Contacts 9 9
Upper Temperature +85 °C +85 °C
Lower Temperature -25 °C -25 °C
Rated Voltage 100 100
Remark For the requested quality class please replace the "." at the end of the article no. By using 1,2,3 For the requested quality class please replace the "." at the end of the article no. By using 1,2,3
Remark ** For the requested Thread type please replace the "4" (standard) at the end of the article no. By using 3 or 4 For the requested Thread type please replace the "4" (standard) at the end of the article no. By using 3 or 4
Insulation Resistance 1 MΩ 1 MΩ
Thread Type 3 = M3 4= UNC-4-40 3 = M3 4= UNC-4-40
Current Rating Max. 5 Max. 5
Gender Male Female
Test Voltage U Eff 200 200
Quality Class* Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles
Capacitor Values**** 01 = 2000 pF 02= 1000 pF 03= 500 pF 04= 250 pF 05= 120 pF 06= 43 pF 07= 22 pF 08= 15 pF 09 = 2 pF (available for non-filters pins) 10 = customized types 01 = 2000 pF 02= 1000 pF 03= 500 pF 04= 250 pF 05= 120 pF 06= 43 pF 07= 22 pF 08= 15 pF 09 = 2 pF (available for non-filters pins) 10 = customized types
Remark **** For another capacitor value replace the 02 in the article number by the number 01,03,04,05,06,07,08,09 or 10 For another capacitor value replace the 02 in the article number by the number 01,03,04,05,06,07,08,09 or 10
Eigenschappen verschillen tussen varianten en subvarianten
