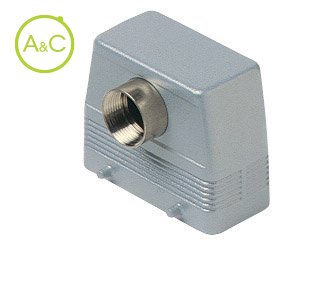

Hoods with 4 pegs, high construction

  • Frontal entry
  • Aluminium, 1xM25
Download product sheet
  • General
Article Number MAF 16.25
Protection Degree IP66
Material Housing Aluminium
Height 76 mm
Length 93.5
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CD 40 P + PE; CDD 72 P + PE; CDS 27 P + PE; CSH 16 P + PE; CNE-CSE 16 P + PE; CCE 16 P + PE; CSS 16 P + PE; CQE 32 P + PE; CQEE 40 P + PE; CMCE-CMSH 6+2 (aux) P + PE; CP 6 P + PE; CX 6/36 and 12/2 P + PE; CX 4/0 and 4/2 P + PE; Mixo 4 modules; CDSH 27 P + PE; CX 6+12P + PE
Locking Mechanism Double locking levers
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Frontal entry
Width 43 mm
Eigenschappen verschillen tussen varianten en subvarianten
Accessoires
CHC 16 G
Covers with 2 levers
