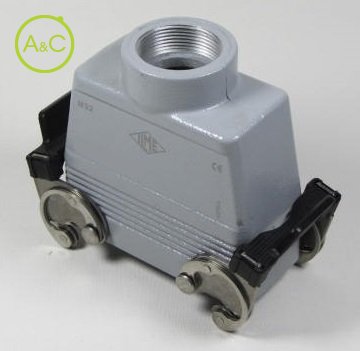

Hoods with 2 levers, high construction

  • Top entry
  • Aluminium, Metric entry
Download product sheet

Entry

  • 1XM32
  • 1xM40
Article Number MAV 16 X32*
Protection Degree IP66
Material Housing Aluminium
Height 91 mm
Remark May be combined with enclosures: CHI 16 CS; CHI 16 CP; CHI 16 C; CHP 16 CS; CHP 16 CP; CHP 16 C; CAP 16 CS; CAP 16 CP; CAP 16 C; MHP 16 CS; MHP 16 CP; MAP 16 CS; MAP 16 CP
Length 93.5
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CD 40 P + PE; CDD 72 P + PE; CDS 27 P + PE; CSH 16 P + PE; CNE-CSE 16 P + PE; CCE 16 P + PE; CSS 16 P + PE; CQE 32 P + PE; CQEE 40 P + PE; CMCE-CMSH 6+2 (aux) P + PE; CP 6 P + PE; CX 6/36 and 12/2 P + PE; CX 4/0 and 4/2 P + PE; Mixo 4 modules; CDSH 27 P + PE; CX 6+12P + PE
Locking Mechanism Double locking levers
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Top entry
Width 59 mm
Eigenschappen verschillen tussen varianten en subvarianten
Accessoires
CHC 16 C*
Covers with 4 pegs and gasket
