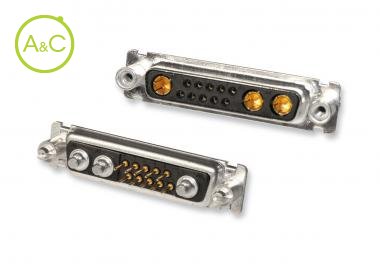

Mixed layout Dip solder 180°

  • Combilock
Download product sheet

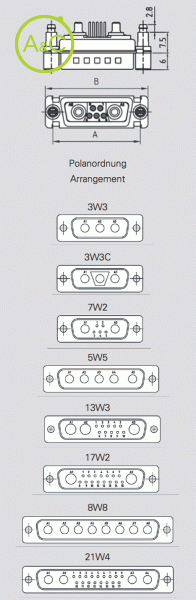

Contact Arrangement

  • 3W3
  • 3W3C
  • 5W5
  • 7W2
  • 8W8
  • 13W3
  • 17W2
  • 21W4
Article Number MDT3W3P2xG2C4 MT3W3S2xG2C4
Upper Temperature High power contacts: +125 °C Coax contacts: +125 °C High power contacts: +125 °C Coax contacts: +125 °C
Lower Temperature High power contacts: -55 °C Coax contacts: -55 °C High power contacts: -55 °C Coax contacts: -55 °C
Contact Plating High power contacts: Au over Ni Coax contacts: Au over Ni High power contacts: Au over Ni Coax contacts: Au over Ni
Housing Material / /
Contact Material High power contacts: Cu-alloy Coax contacts: Cu-alloy High power contacts: Cu-alloy Coax contacts: Cu-alloy
Remark For the requested quality class please replace the "G2" (standard) at the end of the article no. By using G1,G2,G3 For the requested quality class please replace the "G2" (standard) at the end of the article no. By using G1,G2,G3
Remark * For the requested special contacts please replace the x in the article number with the desired special contacts version (0,1,2,3,4) For the requested special contacts please replace the x in the article number with the desired special contacts version (0,1,2,3,4)
Remark ** For the requested Thread type please replace the "4" (standard) at the end of the article no. By using 3 or 4 For the requested Thread type please replace the "4" (standard) at the end of the article no. By using 3 or 4
Insulation Resistance High Power contacts: ≥ 10 Coax Contacts: ≥ 10 MΩ High Power contacts: ≥ 10 Coax Contacts: ≥ 10 MΩ
Thread Type 4= UNC 4-40 3 = M3 4= UNC 4-40 3 = M3
Current Rating High power contacts: 10-40A Coax contacts: 2 High power contacts: 10-40A Coax contacts: 2
Contact Resistance High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m
Gender Male Female
Insulator Material / /
Retaining Clip Material High power contacts: CuBE Coax Contacts: CuBE High power contacts: CuBE Coax Contacts: CuBE
Mating/unmating Force Fully Loaded Connector With Shell Size 1 (9 Pin Sub-d) High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact) High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact)
Mating/unmating Force Fully Loaded Connector With Shell Size 2 (15 Pin Sub-d) / /
Mating/unmating Force Fully Loaded Connector With Shell Size 3 (25pin Sub-d) / /
Mating/unmating Force Fully Loaded Connector With Shell Size 4 (37 Pin Sub-d) / /
Mating/unmating Force Fully Loaded Connector With Shell Size 5 (50 Pin Sub-d) / /
Air And Creepage Distance High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm
Test Voltage U Eff High power contacts: 1000 V Coax contacts: 1000 High power contacts: 1000 V Coax contacts: 1000
Quality Class* G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles
Special Contact Version** 0: no special contacts 1: High Power 10 A 2: High Power 20 A 3: High Power 30 A 4: High Power 40 A 0: no special contacts 1: High Power 10 A 2: High Power 20 A 3: High Power 30 A 4: High Power 40 A
Eigenschappen verschillen tussen varianten en subvarianten
