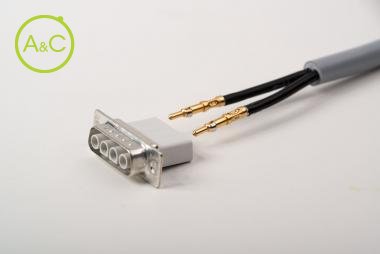

600V D-Sub Crimp connectors

For power applications

MDT4W4P30

MDT4W4P30

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

Contacts

stamped
turned

Article Number	MDT4W4P40	MT4W4S40
Number Of Contacts	4	4
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-55 °C	-55 °C
Pollution Degree	1	1
Operating Voltage	630	630
Over Voltage Category	I: 2,5 kV II: 4 kV acc. To EC 60 664	I: 2,5 kV II: 4 kV acc. To EC 60 664
Gender	Male	Female
Insulator Material	PA GF UL 94-V0	PA GF UL 94-V0
Retaining Clip Material	CuBE alloy	CuBE alloy
Creepage/clearance	≥ 1,8 mm /3,2	≥ 1,8 mm /3,2
Termination Type	Crimp	Crimp

Article Number	MDT4W4P30	MT4W4S30
Number Of Contacts	4	4
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-55 °C	-55 °C
Pollution Degree	1	1
Operating Voltage	630	630
Over Voltage Category	I: 2,5 kV II: 4 kV acc. To EC 60 664	I: 2,5 kV II: 4 kV acc. To EC 60 664
Gender	Male	Female
Insulator Material	PA GF UL 94-V0	PA GF UL 94-V0
Retaining Clip Material	CuBE alloy	CuBE alloy
Creepage/clearance	≥ 1,8 mm /3,2	≥ 1,8 mm /3,2
Termination Type	Crimp	Crimp

Eigenschappen verschillen tussen varianten en subvarianten
