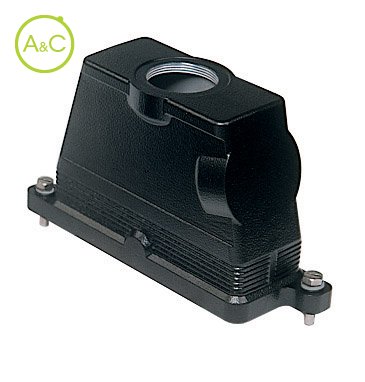

Hoods with top entry, screw locking

  • Aluminium
  • Metric entry
Download product sheet

Entry

  • 1xM25
  • 1xM32
  • 1xM40
Article Number MGV 06.25
Protection Degree IP68
Material Housing Aluminium
Height 101 mm
Length 133
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CDD 24 P + PE; CDS 9 P + PE; CSH 6 P + PE; CNE 6 P + PE; CSE 6 P + PE; CCE 6 P + PE; CSS 6 P + PE; CQE 10 P + PE; MIXO 2 modules; CDSH 6 P + PE; CDSH 9 P + PE
Locking Mechanism Screw
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Top entry
Width 58 mm
Eigenschappen verschillen tussen varianten en subvarianten
