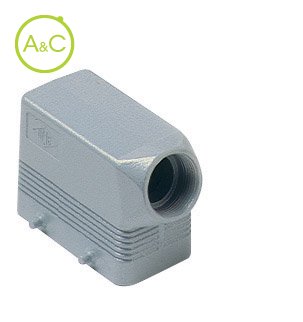

Hoods with 4 pegs

  • Side entry
  • Aluminium, Metric entry
Download product sheet

Entry

  • 1xM20
  • 1xM25
Article Number MHO 10.20
Protection Degree IP66
Material Housing Aluminium
Height 52 mm
Length 73
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CDD 42 P + PE; CDS 18 P + PE; CSH 10 P + PE; CNE-CSE 10 P + PE; CCE 10 P + PE; CSS 10 P + PE; CQE 18 P + PE; CMCE 3+2 P + PE; CMSH 3+2 P + PE; CX 8/24 P + PE; Mixo 3 modules; CDSH 18 P + PE
Locking Mechanism Double locking levers
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Side entry
Width 43 mm
Eigenschappen verschillen tussen varianten en subvarianten
Accessoires
CHC 10 G
Covers with 2 levers
