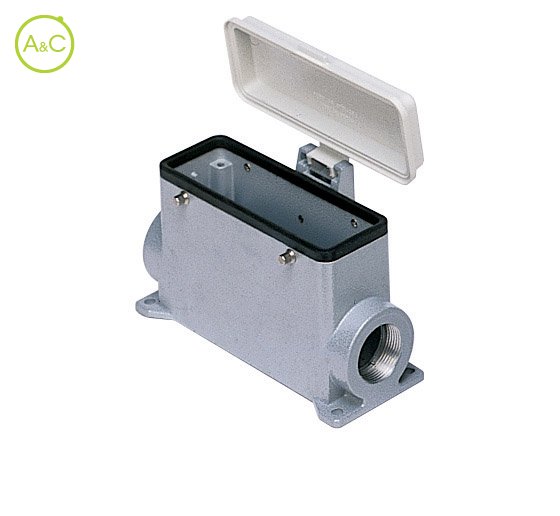

Surface mounting housings

  • With 4 pegs and plastic cover
  • Aluminium, Metric entry
Download product sheet

Entry

  • 1xM25
  • 2xM25
Article Number MHP 24 CP25*
Protection Degree IP65
Material Housing Aluminium
Height 63 mm
Remark May be combined with enclosures: CHO 24 X; CAO 24 X; CHV 24 X; CAV 24 X; MHO 24 X; MAO 24 X; MHV 24 X; MAV 24 X
Length 144
Extra Information Corrosion resistant
UV resistant
With hinged lid
With interlocking device
Coating Housing With powder coating
Required Inserts CD 64P + PE; CDD 108 P + PE; CDS 42P + PE; CSH 24P + PE; CNE-CSE 24P + PE; CCE 24P + PE; CSS 24P + PE; CQE 46P + PE; CQEE 64P + PE; CMCE 10+2 (aux)P + PE; CMSH 10+2 (aux)P + PE; CX 4/8 and 6/6P + PE; MIXO 6 modules; CDSH 42 P + PE
Inflammability Class Of Insulation Material Acc. With Ul94 V2
Locking Mechanism Double locking levers
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Side entry
Width 57 mm
Eigenschappen verschillen tussen varianten en subvarianten
