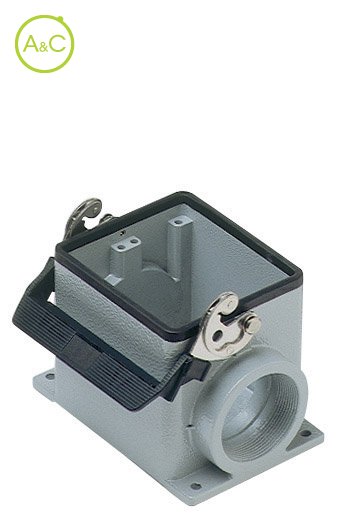

Surface mounting housings

  • With single lever
  • Aluminium, Metric entry
Download product sheet

Entry

  • 1xM40
  • 1xM50
  • 2xM40
  • 2xM50
Article Number MHP 32 L40
Protection Degree IP66
Material Housing Aluminium
Height 90 mm
Length 125
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CD 80P+PE; CDD 144P+PE; CDS 54P+PE; CSH 32P+PE; CNE-CSE 32P+PE; CCE 32P+PE; CSS 32P+PE; CQE 64P+PE; CMCE 12+4(aux)PE; CME 12+4(aux)P+PE; CMSH 12+4(aux)P+PE; CP 12P+PE; MIXO 4+4 modules; CDHS 54 P + PE
Locking Mechanism Single locking lever
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Side entry
Width 84 mm
Eigenschappen verschillen tussen varianten en subvarianten
