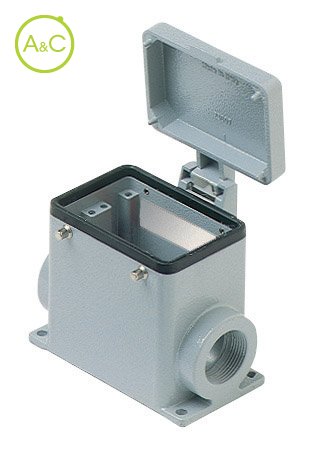

Surface mounting housings

With 4 pegs and cover, side entry
Aluminium, Metric entry

MHP 50 CS32

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

Entry

1x21PG
1x29PG
2x21PG
2x29PG

Article Number	MHP 50 CS32*
Protection Degree	IP65
Material Housing	Aluminium
Height	82 mm
Remark	May be combined with enclosures: CHO 50 X;cao 50 X;CAV 50 X; MHO 50 X;MAO 50 X;MFO 50 X;MAV 50 X;MFV 50 X
Length	106
Extra Information	Corrosion resistant UV resistant With hinged lid With interlocking device
Coating Housing	With powder coating
Required Inserts	CD 50 P + PE; CDD 76 P + PE; CSAH 32 P + PE; CDA 32 P + PE; CDC 32 P + PE
Locking Mechanism	Double locking levers
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	57.3 mm

Article Number	MHP 50 CS40*
Protection Degree	IP65
Material Housing	Aluminium
Height	82 mm
Remark	May be combined with enclosures: CHO 50 X;cao 50 X;CAV 50 X; MHO 50 X;MAO 50 X;MFO 50 X;MAV 50 X;MFV 50 X
Length	106
Extra Information	Corrosion resistant UV resistant With hinged lid With interlocking device
Coating Housing	With powder coating
Required Inserts	CD 50 P + PE; CDD 76 P + PE; CSAH 32 P + PE; CDA 32 P + PE; CDC 32 P + PE
Locking Mechanism	Double locking levers
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	57.3 mm

Article Number	MHP 50 CS232*
Protection Degree	IP65
Material Housing	Aluminium
Height	82 mm
Remark	May be combined with enclosures: CHO 50 X;cao 50 X;CAV 50 X; MHO 50 X;MAO 50 X;MFO 50 X;MAV 50 X;MFV 50 X
Length	106
Extra Information	Corrosion resistant UV resistant With hinged lid With interlocking device
Coating Housing	With powder coating
Required Inserts	CD 50 P + PE; CDD 76 P + PE; CSAH 32 P + PE; CDA 32 P + PE; CDC 32 P + PE
Locking Mechanism	Double locking levers
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Two-sided
Width	57.3 mm

Article Number	MHP 50 CS240*
Protection Degree	IP65
Material Housing	Aluminium
Height	82 mm
Remark	May be combined with enclosures: CHO 50 X;cao 50 X;CAV 50 X; MHO 50 X;MAO 50 X;MFO 50 X;MAV 50 X;MFV 50 X
Length	106
Extra Information	Corrosion resistant UV resistant With hinged lid With interlocking device
Coating Housing	With powder coating
Required Inserts	CD 50 P + PE; CDD 76 P + PE; CSAH 32 P + PE; CDA 32 P + PE; CDC 32 P + PE
Locking Mechanism	Double locking levers
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Two-sided
Width	57.3 mm

Eigenschappen verschillen tussen varianten en subvarianten

Accessoires

Covers with 2 levers
