Surface mounting housings

  • With lever
  • Aluminium, 1xM20
  • General

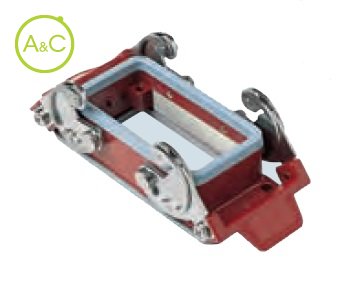

Article Number MHPR 10.20
Protection Degree IP65
Material Housing Aluminium
Height 57 mm
Length 93.5
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CNE…RY 10P+PE
Locking Mechanism Double locking levers
Operation Lower Temperature -40 °C
Operation Upper Temperature 180 °C
Position Cable Feed Side entry
Width 52 mm
Eigenschappen verschillen tussen varianten en subvarianten
Accessoires
CHCR 10
Cover with 4 pegs
