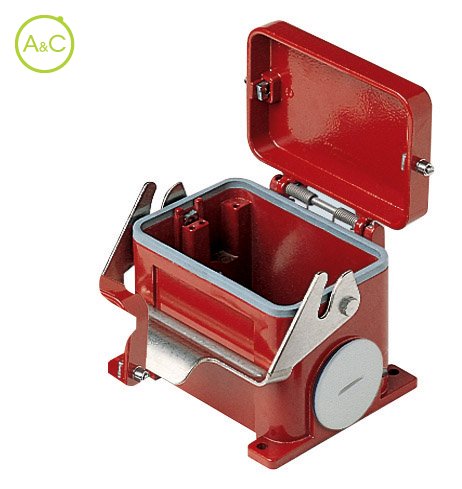

Surface mounting housings

  • With lever and cover
  • Aluminium, 1/2 xM40
  • General
Article Number MHPR 48 LS40
Protection Degree IP65
Material Housing Aluminium
Height 99 mm
Length 141
Extra Information Corrosion resistant
UV resistant
With hinged lid
With interlocking device
Coating Housing With powder coating
Required Inserts CNE...RY 48P+PE
Locking Mechanism Single locking lever
Operation Lower Temperature -40 °C
Operation Upper Temperature 180 °C
Position Cable Feed Side entry
Width 120 mm
Eigenschappen verschillen tussen varianten en subvarianten
