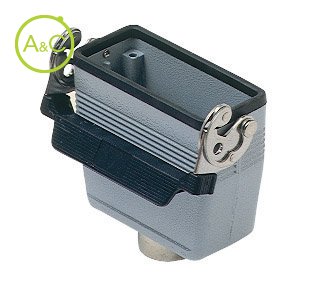

Hoods with 1 lever and gasket

  • Top entry
  • Aluminium, 1xM32
Download product sheet
  • General
Article Number MHV 16 LG32
Protection Degree IP66
Material Housing Aluminium
Height 63.5 mm
Length 109.5
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CD 40 P + PE; CDD 72 P + PE; CDS 27 P + PE; CSH 16 P + PE; CNE-CSE 16 P + PE; CCE 16 P + PE; CSS 16 P + PE; CQE 32 P + PE; CQEE 40 P + PE; CMCE-CMSH 6+2 (aux) P + PE; CP 6 P + PE; CX 6/36 and 12/2 P + PE; CX 4/0 and 4/2 P + PE; Mixo 4 modules; CDSH 27 P + PE; CX 6+12P + PE
Locking Mechanism Single locking lever
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Top entry
Width 43 mm
Eigenschappen verschillen tussen varianten en subvarianten
Accessoires
CHC 16 L
Covers with 2 pegs
CHC 16 SL
Covers with 2 pegs
