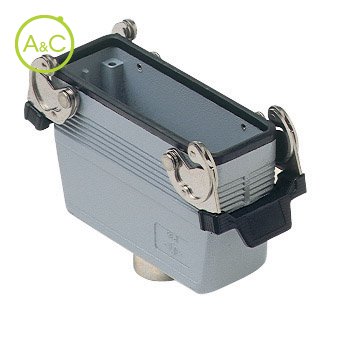

Hoods with 2 levers and gasket

  • Top entry
  • Aluminium, 1xM32
Download product sheet
  • General
Article Number MHV 24 G32
Protection Degree IP66
Material Housing Aluminium
Height 73.5 mm
Length 120
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CD 64P + PE; CDD 108 P + PE; CDS 42P + PE; CSH 24P + PE; CNE-CSE 24P + PE; CCE 24P + PE; CSS 24P + PE; CQE 46P + PE; CQEE 64P + PE; CMCE 10+2 (aux)P + PE; CMSH 10+2 (aux)P + PE; CX 4/8 and 6/6P + PE; MIXO 6 modules; CDSH 42 P + PE
Locking Mechanism Double locking levers
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Top entry
Width 59 mm
Eigenschappen verschillen tussen varianten en subvarianten
Accessoires
CHC 24
Covers with 4 pegs
CHC 24 S
Covers with 4 pegs
