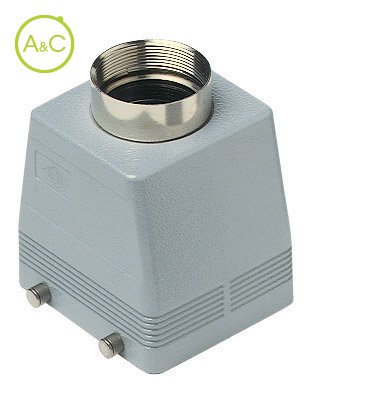

Hoods with 4 pegs

  • Top entry
  • Aluminium, Metric entry
Download product sheet

Entry

  • 1xM32
  • 1xM40
  • 1xM50
Article Number MHV 32.32
Protection Degree IP66
Material Housing Aluminium
Height 117 mm
Length 93.5
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CD 80P+PE; CDD 144P+PE; CDS 54P+PE; CSH 32P+PE; CNE-CSE 32P+PE; CCE 32P+PE; CSS 32P+PE; CQE 64P+PE; CMCE 12+4(aux)PE; CME 12+4(aux)P+PE; CMSH 12+4(aux)P+PE; CP 12P+PE; MIXO 4+4 modules; CDHS 54 P + PE
Locking Mechanism Double locking levers
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Top entry
Width 82.5 mm
Eigenschappen verschillen tussen varianten en subvarianten
Accessoires
CHC 32 G
Covers with 2 levers
