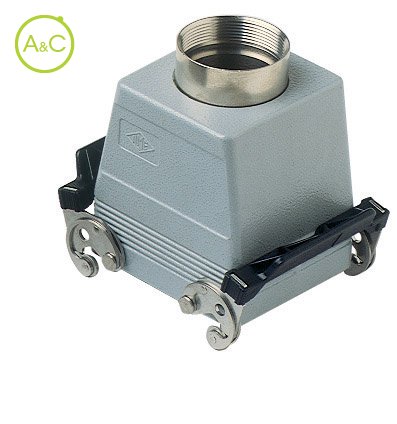

Hoods with 2 levers

  • Top entry
  • Aluminium, 1xM40
Download product sheet
  • General
Article Number MHV 32 X40*
Protection Degree IP66
Material Housing Aluminium
Height 117 mm
Remark May be combined with enclosure: CHI 32 CS
Length 93.5
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CD 80P+PE; CDD 144P+PE; CDS 54P+PE; CSH 32P+PE; CNE-CSE 32P+PE; CCE 32P+PE; CSS 32P+PE; CQE 64P+PE; CMCE 12+4(aux)PE; CME 12+4(aux)P+PE; CMSH 12+4(aux)P+PE; CP 12P+PE; MIXO 4+4 modules; CDHS 54 P + PE
Locking Mechanism Double locking levers
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Top entry
Width 98.5 mm
Eigenschappen verschillen tussen varianten en subvarianten
Accessoires
CHC 32 C*
Covers with 4 pegs and gasket
