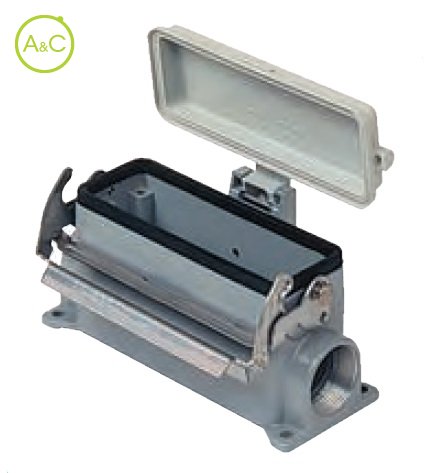

Surface mounting housings, high construction

  • With single lever in stainless steel and plastic cover
  • Aluminium, Metric entry
Download product sheet

Entry

  • 1xM32
  • 1xM40
  • 2xM32
  • 2xM40
Article Number MVAP 06 LP32
Protection Degree IP65
Material Housing Aluminium
Height 73 mm
Length 82
Extra Information Corrosion resistant
UV resistant
With hinged lid
With interlocking device
Coating Housing With powder coating
Required Inserts CDD 24 P + PE; CDS 9 P + PE; CSH 6 P + PE; CNE 6 P + PE; CSE 6 P + PE; CCE 6 P + PE; CSS 6 P + PE; CQE 10 P + PE; MIXO 2 modules; CDSH 6 P + PE; CDSH 9 P + PE
Inflammability Class Of Insulation Material Acc. With Ul94 V2
Locking Mechanism Single locking lever
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Side entry
Width 57 mm
Eigenschappen verschillen tussen varianten en subvarianten
