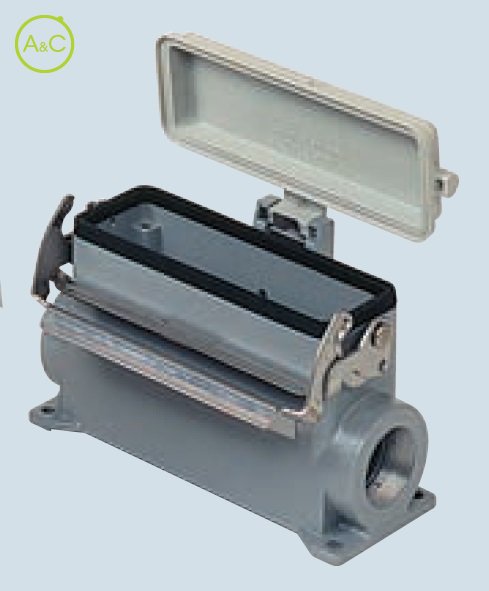

Surface mounting housings, high construction

  • With single lever in stainless steel and plastic cover
  • Aluminium, Metric entry
Download product sheet

Entry

  • 1xM32
  • 1xM40
  • 2xM32
  • 2xM40
Article Number MVAP 10 LP32
Protection Degree IP65
Material Housing Aluminium
Height 73 mm
Length 93.5
Extra Information Corrosion resistant
UV resistant
With hinged lid
With interlocking device
Coating Housing With powder coating
Required Inserts CDD 42 P + PE; CDS 18 P + PE; CSH 10 P + PE; CNE-CSE 10 P + PE; CCE 10 P + PE; CSS 10 P + PE; CQE 18 P + PE; CMCE 3+2 P + PE; CMSH 3+2 P + PE; CX 8/24 P + PE; Mixo 3 modules; CDSH 18 P + PE
Locking Mechanism Single locking lever
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Side entry
Width 57 mm
Eigenschappen verschillen tussen varianten en subvarianten
