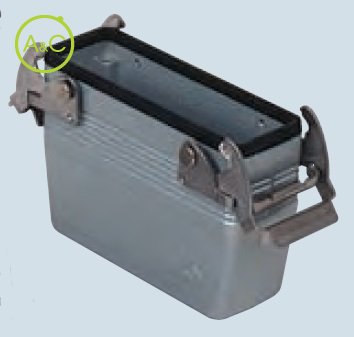

Hoods top entry, without adaptor

  • With gasket and 2 levers in stainless steel
  • Aluminium, Metric entry
Download product sheet

Entry

  • 1xM25
  • 1xM32
Article Number MVFV 24 G25
Protection Degree IP67
Material Housing Aluminium
Height 81 mm
Length 169
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CD 64P + PE; CDD 108 P + PE; CDS 42P + PE; CSH 24P + PE; CNE-CSE 24P + PE; CCE 24P + PE; CSS 24P + PE; CQE 46P + PE; CQEE 64P + PE; CMCE 10+2 (aux)P + PE; CMSH 10+2 (aux)P + PE; CX 4/8 and 6/6P + PE; MIXO 6 modules; CDSH 42 P + PE
Locking Mechanism Double locking lever
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Top entry
Width 57 mm
Eigenschappen verschillen tussen varianten en subvarianten
