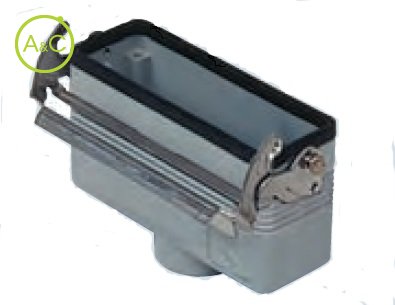

Hoods, top entry

  • With gasket, with single lever in stainless steel
  • Aluminium, 1xM25
Download product sheet
  • General
Article Number MVV 10 LG25
Protection Degree IP67
Material Housing Aluminium
Height 63.5 mm
Length 87
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CDD 42 P + PE; CDS 18 P + PE; CSH 10 P + PE; CNE-CSE 10 P + PE; CCE 10 P + PE; CSS 10 P + PE; CQE 18 P + PE; CMCE 3+2 P + PE; CMSH 3+2 P + PE; CX 8/24 P + PE; Mixo 3 modules; CDSH 18 P + PE
Locking Mechanism Single locking lever
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Top entry
Width 68 mm
Eigenschappen verschillen tussen varianten en subvarianten
