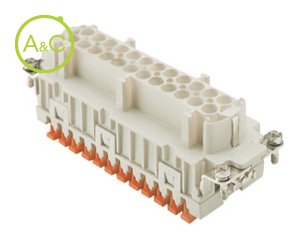

Inserts, 48P + PE, Spring terminal connection

  • Female inserts with female contacts
  • Silver plated contacts, with actuator button
Download product sheet
  • General
Article Number CSHF 24
Pollution Degree 3
Number Of Poles 48
Connection Type Spring clamp connection
Contact Type Female
Extra Information With protective conductor
With wire protection
Ambient Lower Temperature -40 °C
Ambient Upper Temperature 125 °C
Pin Numbers 1-24
Min. Cross Section Without End Sleeve 0.14 mm²
Max. Cross Section Without End Sleeve 2.5 mm²
Min. Cross Section Solid Wire 0.14 mm²
Max. Cross Section Solid Wire 2.5 mm²
Required Housing C-type size 104.62
W-type 104.62
Diameter Male Contact 2.5 mm
Inflammability Class Of Insulation Material Acc. With Ul94 V0
Material Insert Thermoplastic
Material Contact Brass
Plating Of Contact Silver
Max. Rated Current 16 A
Nominal Rated Voltage 500 V
Over Voltage Category III
Rated Surge Voltage 6 kV
Eigenschappen verschillen tussen varianten en subvarianten
Accessoires
CR VNTG
Screws for second earth terminal
CRBM
Coupling screws
CR 20*
Single code pins for 6 codings
CR 20 D*
Single code pins for 6 codings
CRM*
Male double coding and guide pins, for 16 codes
CRM D*
Male double coding and guide pins, for 16 codes
CRF*
Female double coding and guide pins, for 16 codes
CRF D*
Female double coding and guide pins, for 16 codes
CRM
Male coding and guide pin, for 72 codes
CRM D
Male coding and guide pin, for 72 codes
CRF
Female coding and guide pin, for 72 codes
CRF D
Female coding and guide pin, for 72 codes
CR 72
Single coding and guide pin, for 72 codes
CR 72 D
Single coding and guide pin, for 72 codes
