Ilme
- General

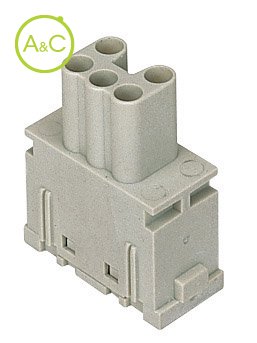

| Article Number | CX 05 SF |
| Pollution Degree | 3 |
| Number Of Poles | 5 |
| Connection Type | Spring clamp connection |
| Contact Type | Female |
| Extra Information | With wire protection |
| Ambient Lower Temperature | -40 °C |
| Ambient Upper Temperature | 125 °C |
| Min. Cross Section Without End Sleeve | 0.14 mm² |
| Max. Cross Section Without End Sleeve | 2.5 mm² |
| Diameter Male Contact | 2.5 mm |
| Inflammability Class Of Insulation Material Acc. With Ul94 | V0 |
| Material Insert | Thermoplastic |
| Material Contact | Brass |
| Plating Of Contact | Silver |
| Max. Rated Current | 16 A |
| Nominal Rated Voltage | 400 V |
| Over Voltage Category | III |
| Rated Surge Voltage | 6 kV |
Eigenschappen verschillen tussen varianten en subvarianten
