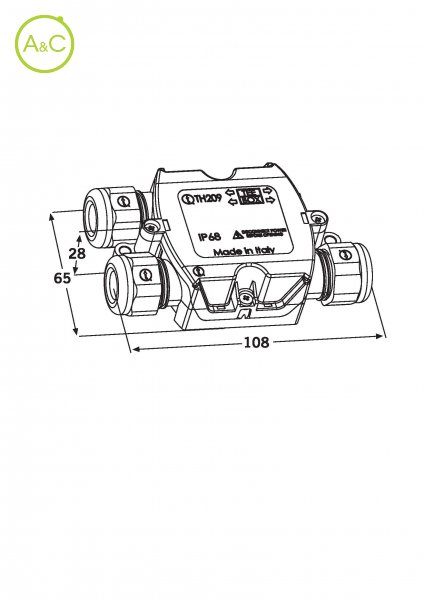

High protection Junction boxes empty and with terminal blocks

  • Waterproof
  • 3 cable glands
Download product sheet

Protection Degree

  • IP54
  • IP68
Article Number THA.209.D1A THA.209.E1A
Upper Temperature +125 °C +125 °C
Lower Temperature -40 °C -40 °C
Inner Dimensions 43 mm x 53.5 mm x 24 mm 43 mm x 53.5 mm x 24 mm
Cable Diameter Min-max A 7,0 -14,0 mm 7,0 - 9,5 mm
Cable Diameter Min-max B 7,0 -14,0 mm 7,0 -14,0 mm
Terminal Block TH026 / TH029 / TH032 / TH027 TH026 / TH029 / TH032 / TH027
Cable Entries/exits 3 ways 3 ways
T Marking T85 16 A °C T85 16 A °C
Protection Degree Details 0,5 bar (5 m / 3 h) 0,5 bar (5 m / 3 h)
Body PA66 UL94 V2 GWT 850°C black - grey RAL 7035 PA66 UL94 V2 GWT 850°C black - grey RAL 7035
Lock Nuts PA66 FV UL94 V0 GWT 960°C black - grey RAL 7035 PA66 FV UL94 V0 GWT 960°C black - grey RAL 7035
Grommets TPE TPE
Co-moulded Seal Of Lid SEBS SEBS
Fixing Screws Of Lid M3 x 12,0 mm inox stainless steel M3 x 12,0 mm inox stainless steel
Standards TEST REPORT EN60529:1991+A1:2000 IP54: 2.6 l/min 10 min IP68: 5 MT-PROOF 3 h IP66: 100 l/min 3 min EN60998-1:2004 heating resistance TEST REPORT EN60529:1991+A1:2000 IP54: 2.6 l/min 10 min IP68: 5 MT-PROOF 3 h IP66: 100 l/min 3 min EN60998-1:2004 heating resistance
Eigenschappen verschillen tussen varianten en subvarianten
Accessoires
6000175CC
Terminal block mounting plate for TH209 series for use with TH027 terminal block
6000176CC
Terminal block mounting plate for TH209 series for use with TH026 terminal block
