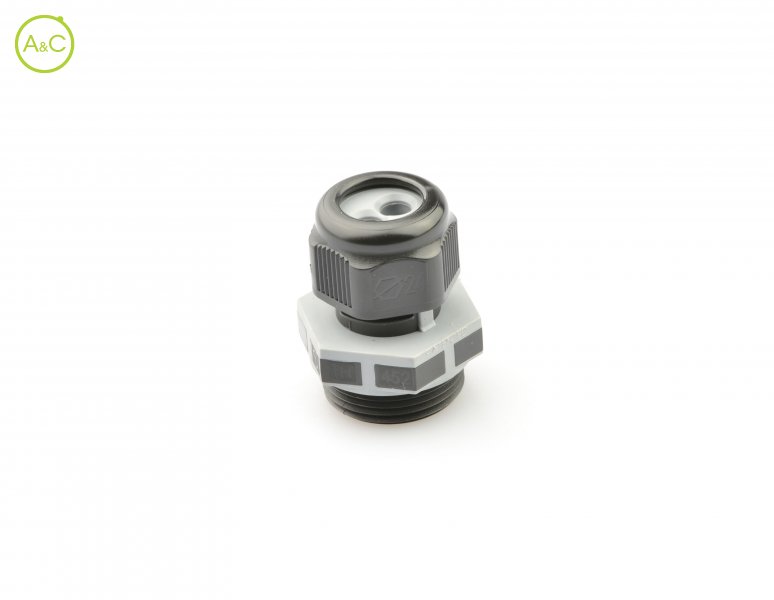

IP 68 Co-moulded Metric cable gland

  • 2 holes
Download product sheet

Cable Diameter

  • 6
Article Number THA.452.A1A THA.452.A1E
Protection Degree IP68 IP68
Upper Temperature +125 °C +125 °C
Lower Temperature -40 °C -40 °C
Thread M25 M25
Colour black grey RAL 7035
Min-max Cable Diameter 6 mm 6 mm
Protection Degree Details 5 bar (50 m / 1 h) 5 bar (50 m / 1 h)
Body PA66 UL94 V0/V2 GWT 850°C black - grey RAL7035 PA66 UL94 V0/V2 GWT 850°C black - grey RAL7035
Lock Nuts PA66 GF UL94 V0 GWT 960°C black - grey RAL7035 PA66 GF UL94 V0 GWT 960°C black - grey RAL7035
Co-moulded Seals TPE grey RAL7001 TPE grey RAL7001
Standards EN50262:1998+ A1:2001 +A1:2004 EN50262:1998+ A1:2001 +A1:2004
Eigenschappen verschillen tussen varianten en subvarianten
