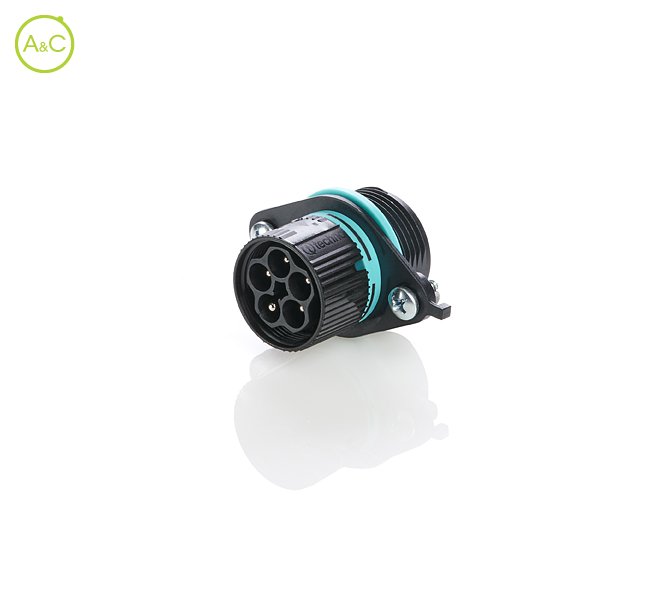

IP68 Panel-mount mini connector

  • Plug
  • Fixing nut not included
Download product sheet

Number Of Poles

  • 2
  • 3
  • 4
  • 5
Article Number THB.387.C4A THP.387.C4A
Number Of Contacts 4 4
Protection Degree IP68 IP68
Upper Temperature +125 °C +125 °C
Lower Temperature -40 °C -40 °C
Rated Voltage 450 450
Pollution Degree 2 2
Rated Current 17.5 A 17.5 A
Contact Terminal Contact screw terminals. For cable section < 1.0 mm² Piercing clip terminals max 1,5 mm²
Terminals Screw Piercing
Cable Section 0,5 - 2,5 mm² 0,5 - 1,5 mm²
Min-max Cable Diameter 7,0 - 12,0 mm 7,0 - 12,0 mm
Protection Degree Details 3 bar (30m / 3h) 3 bar (30m / 3h)
Impulse Withstand Category II II
Impulse Withstand Voltage 4 kV 4 kV
Tracking Index PTI 175 PTI 175
Cable Glands PA66 UL94 V2 PA66 UL94 V2
Terminal Block Housing PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035 PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035
Grommets TPE green TPE green
Co-moulded Seals TPE green TPE green
Contact Screw Terminals Brass nickel plated Brass nickel plated
Standard / Piercing Screws M3 steel zinc plated M3 steel zinc brass plated
Standards EN61984:2009 EN61984:2009
Note Every connector housing type can be equipped with male or female contacts. For reasons pertaining to safety, only female contacts may be used in the live part of the connector. Every connector housing type can be equipped with male or female contacts. For reasons pertaining to safety, only female contacts may be used in the live part of the connector.
Eigenschappen verschillen tussen varianten en subvarianten
