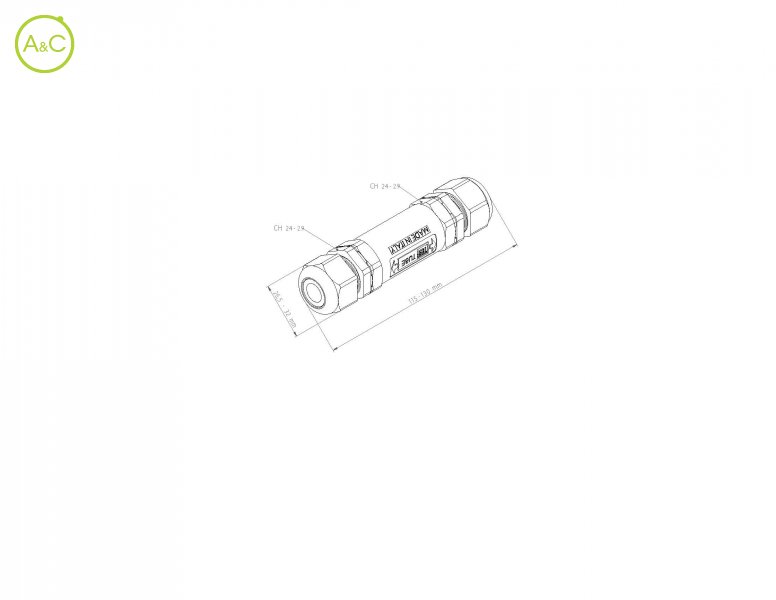

High protection In-line and junction with innovative cable glands

  • I Type, End Barrier
  • Ø 7-17mm
Download product sheet

Number Of Poles

  • 2
  • 3
  • 4
  • 5
  • 6
Article Number THB.400.F2A.1 THB.400.F2A.2 THB.400.F2A.3
Number Of Contacts 2 2 2
Protection Degree IP68 5 bar IP68 5 bar IP68 5 bar
Upper Temperature +125 °C +125 °C +125 °C
Lower Temperature -40 °C -40 °C -40 °C
Rated Voltage 450 450 450
Rated Current 32 A 32 A 32 A
Product Shape (type: I, L, T, Y) I I I
Contact Terminal End barrier contact End barrier contact End barrier contact
Terminals Screw Screw Screw
Cable Section max 4,0 mm² max 4,0 mm² max 4,0 mm²
Cable Diameter Min-max A 7,0 - 10,5 mm 7,0 - 10,5 mm 7,0 - 10,5 mm
Cable Diameter Min-max B 7,0 - 10,5 mm 10,5 - 14,0 mm 14,0 - 17,0 mm
Cable Entries/exits 2 ways 2 ways 2 ways
T Marking T125 °C T125 °C T125 °C
Protection Degree Details 50 m / 1 h 50 m / 1 h 50 m / 1 h
Tracking Index PTI 250 PTI 250 PTI 250
Connector Housing PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035 PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035 PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035
Cable Glands PA6 / PA66 UL94 V2 GWT 850°C black - grey RAL 7035 PA6 / PA66 UL94 V2 GWT 850°C black - grey RAL 7035 PA6 / PA66 UL94 V2 GWT 850°C black - grey RAL 7035
Terminal Block Housing PA66 GF UL94 V0 GWT 960°C black - brown PA66 GF UL94 V0 GWT 960°C black - brown PA66 GF UL94 V0 GWT 960°C black - brown
Co-moulded Seals TPE Rubber (gray RAL 7035) TPE Rubber (gray RAL 7035) TPE Rubber (gray RAL 7035)
Contact Screw Terminals Brass nickel plated Brass nickel plated Brass nickel plated
Standard / Piercing Screws M3 steel zinc plated M3 steel zinc plated M3 steel zinc plated
Standards EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004 EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004 EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004
Eigenschappen verschillen tussen varianten en subvarianten
