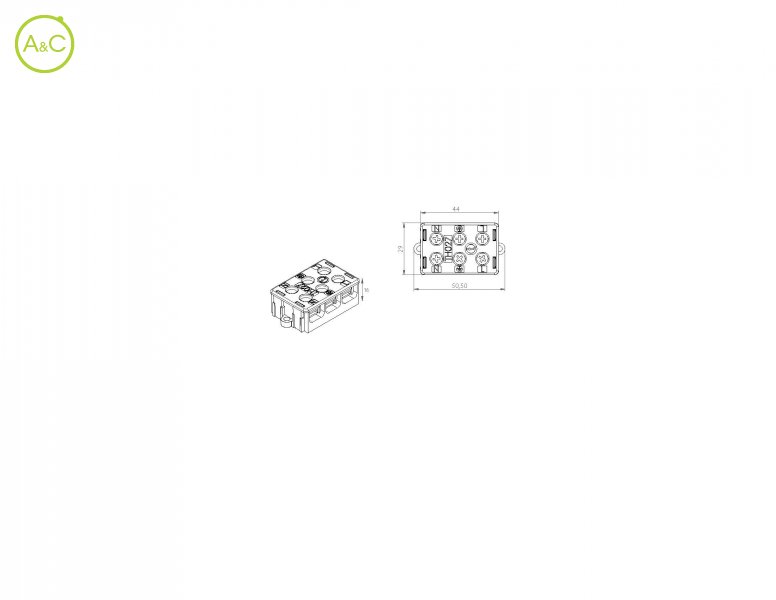

Compact linear terminal block

Download product sheet

Number Of Poles

  • 2
  • 3
Article Number THC.027.A2A
Number Of Contacts 2
Protection Degree IP00
Upper Temperature +125 °C
Lower Temperature -40 °C
Rated Voltage 450
Rated Current 41 A
Terminals Screw
Cable Section max 6,0 mm²
T Marking T125 °C
Protection Degree Details can install inside TEEBOX
Tracking Index PTI 175
Terminal Block Housing PA66 GF UL94 V0 GWT 960°C brown
Contact Screw Terminals Brass nickel plated
Standard / Piercing Screws M3,5 x 7,5 steel zinc plated
Standards EN60998-1:2004 EN60998-2-1:2004
Eigenschappen verschillen tussen varianten en subvarianten
