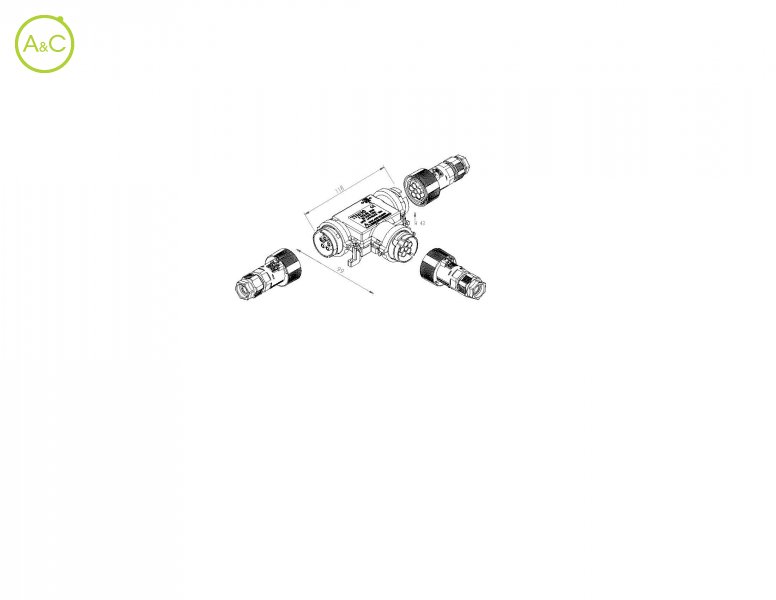

16A/ 24A current distributor

  • IP65
  • 3 ways
Download product sheet

Number Of Poles

  • 2
  • 3
  • 5
  • 6
Article Number THH.631.B2A THP.631.B2A
Number Of Contacts 2 2
Protection Degree IP65 IP65
Upper Temperature +125 °C +125 °C
Lower Temperature -40 °C -40 °C
Rated Voltage 400 400
Pollution Degree 2 2
Rated Current 25 A 17.5 A
Plug - Socket 2 output: PLUG THB.405 1 input: SOCKET THB.405 2 output: PLUG THB.405 1 input: SOCKET THB.405
Contact Terminal Contact screw terminals for cable section < 1,0 mm² Piercing clip terminal max 1,5 mm²
Terminals Screw Piercing
Min-max Cable Diameter 7,0 - 14,0 mm 7,0 - 14,0 mm
Cable Entries/exits 3 ways 3 ways
T Marking T85 °C T85 °C
Impulse Withstand Category II II
Impulse Withstand Voltage 4 kV 4 kV
Tracking Index PTI 175 PTI 175
Distributor And Connector Housing PA66 UL94 V0/V2 GWT 850°C black - grey RAL7035 PA66 UL94 V0/V2 GWT 850°C black - grey RAL7035
Grommets TPE/SEBS TPE/SEBS
Seals TPE/SEBS TPE/SEBS
Fixing Screws Of Lid M3 x 12,0 mm inox stainless steel self-locking screw M3 x 12,0 mm inox stainless steel self-locking screw
Standards EN60998-1:2004 HEATING RESISTANCE EN61984:2001 EN60529:1991+A1:2000 EN60998-1:2004 HEATING RESISTANCE EN61984:2001 EN60529:1991+A1:2000
Eigenschappen verschillen tussen varianten en subvarianten
