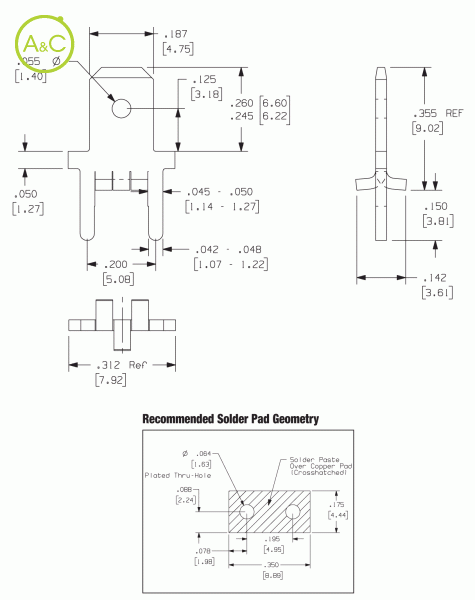

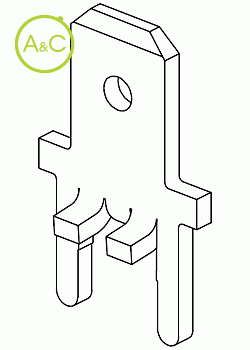

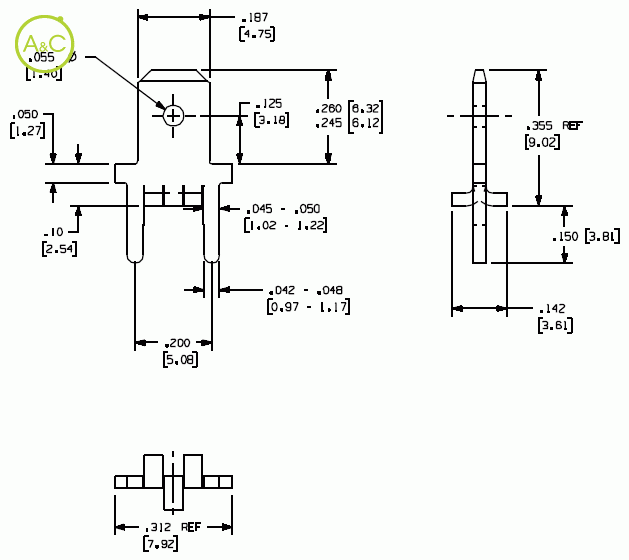

0.187" (4.75mm) Tabs / Quick Disconnect Terminals

  • Straight, 12.83 mm high
  • General
Article Number 6291
Packaging Reeled
Extra Description Straight, 12.83 mm high
Hole Dimension 0.055" (1.408mm) hole
Material Thickness / Type 0.032" (0.81mm) C26000 Brass
Standard Finish 100% Tin over Copper
Current Rating Ul 25 Amperes
Current Rating C-ul 25 Amperes
Ul File Number E146208
Feeder/applicator System Surf-Shooter SMT ™ Continuous Strip Feeder Model 9700 Model 9700 XY
Pieces Per Reel (reeled Part No.) 2500
Product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
