Receptacle AWG#30 Natural/Grey

  • ZM CONNECTOR
Download product sheet

Number Of Poles

  • 2
  • 3
  • 9
  • 13
Article Number 02ZR-3H-P
Number Of Contacts 2
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 1.5mm Pitch Disconnectable Crimp Style
Connection Type Wire to Wire Connectors
Pitch / Style 1.50 mm
Rated Current (ac/dc) 0.7 A
Rated Voltage (ac/dc) 50 V
Eigenschappen verschillen tussen varianten en subvarianten

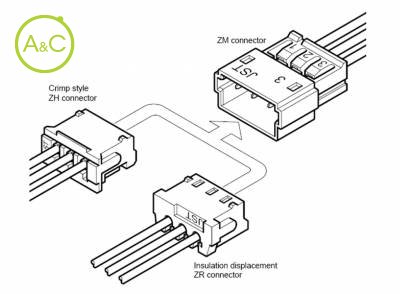

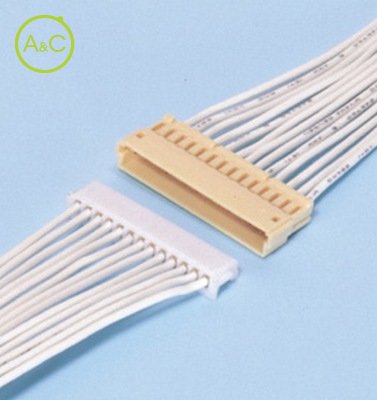

1.5mm (.059") pitch connectors allow higher densities. Compact design Precision stamping technology is applied to produce mate pins that are only 0.5mm (.020") in diameter. This results in ultracompact wire-to-wire connectors that are a mere 3.6mm (.142") thick. When used with ZH crimp style connectors, high density mounting with a total connector length of only 9.2mm (.362") is possible. Housing-to-terminal locks Spring action housing-to-terminal locks are an inherent part of the housing, and assure smooth contact insertion and firm contact retention. Both crimp style and insulation displacement receptacles can be used Both ZH crimp style and ZR insulation displacement connector receptacles can be accommodated by the ZM connector. Thus, mounting designs can be matched to current "Z" series connector use. Fully shrouded header resists "rocking" during mating This fully shrouded header provides protection from rocking the connector halves back and forth during mating and unmating. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
