Socket

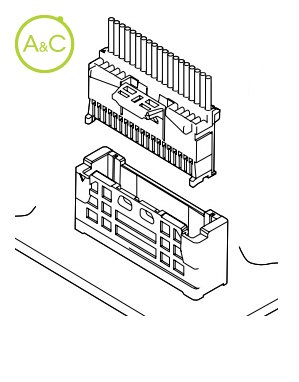

CS/CSR CONNECTOR

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

JST

Number Of Poles

Article Number	03CSR-8PK
Number Of Contacts	3
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.0mm pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	1.8 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	05CSR-8PK
Number Of Contacts	5
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.0mm pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	1.8 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	07CSR-8PK
Number Of Contacts	7
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.0mm pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	1.8 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	09CSR-8PK
Number Of Contacts	9
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.0mm pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	1.8 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	11CSR-8PK
Number Of Contacts	11
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.0mm pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	1.8 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	13CSR-8PK
Number Of Contacts	13
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.0mm pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	1.8 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	15CSR-8PK
Number Of Contacts	15
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.0mm pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	1.8 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	17CSR-8PK
Number Of Contacts	17
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.0mm pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	1.8 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	19CSR-8PK
Number Of Contacts	19
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.0mm pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	1.8 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	21CSR-8PK
Number Of Contacts	21
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.0mm pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	1.8 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	23CSR-8PK
Number Of Contacts	23
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.0mm pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	1.8 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	25CSR-8PK
Number Of Contacts	25
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.0mm pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	1.8 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	27CSR-8PK
Number Of Contacts	27
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.0mm pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	1.8 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	29CSR-8PK
Number Of Contacts	29
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.0mm pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	1.8 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	31CSR-8PK
Number Of Contacts	31
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.0mm pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	1.8 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Eigenschappen verschillen tussen varianten en subvarianten

This is a 1.0mm pitch insulation displacement connector with the secure locking structure to prevent coming off the connector and incomplete mating. 1.8A in rated current was realized by using AWG#27. Secure locking structure Realization of multi-circuits by low insertion force Countermeasure for unexpected prying insertion EC directive 2002/95/EC (the RoHS Directive) - Compliant
