Top Entry Type THT Receptacle

  • JQ CONNECTOR
Download product sheet

Number Of Poles

  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 15
Article Number 03JQ-BT
Number Of Contacts 3
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 2.5mm Pitch Board-to-Board Connector
Connection Type Printed Circuit Board Connectors
Pitch / Style 2.50 mm
Rated Current (ac/dc) 3 A
Rated Voltage (ac/dc) 250 V
Pcb Mount Style Through-hole Technology (THT)
Eigenschappen verschillen tussen varianten en subvarianten

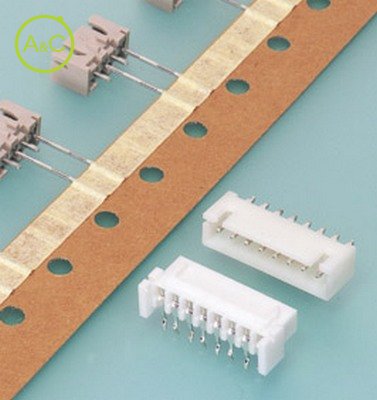

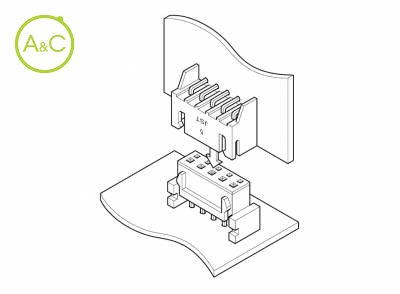

This 2.5mm (.098") pitch connector is used to interconnect printed circuit boards. It easily resists distortion during mating, thus ensuring reliable contact, even under adverse conditions. High contact pressure. Fully shrouded header. The header is interchangeable with those of crimp style XH connector and insulation displacement NR/NRD connectors. High contact pressure This vibration-resistant, double-beam contact provides high contact pressure and thus eliminates contact bounce during vibration or shock. Box-shaped shroud The four-sided shrouded header prevents the socket housing from being misinserted or distorted during mating. The slots in the header's shroud fit snugly into the receptacle housing, guaranteeing a vibration-proof coupling. And the serrated square posts are pressure-fit to prevent flux from entering during soldering. Secure locking on printed circuit boards The solder tails of both the plug and receptacle have board retention features. This ensures secure mounting and accurate location during soldering. Vertical, horizontal and parallel mounting Both top-entry and side-entry receptacles and shrouded headers are available, thus allowing printed circuit boards to be connected vertically, horizontally or parallel to the mother board. Interchangeability The shrouded header is interchangeable with the XH wire-to-board crimp style connectors, the NR and NRD wire-to-board insulation displacement connectors. Standards UL Recognized E60389 CSA Certified LR20812 TUV Certified R75085 RoHS Compliant
