Female Connector for FFS Connector

  • FFS CONNECTOR
Download product sheet

Number Of Poles

  • 4
  • 5
  • 6
  • 8
  • 15
  • 21
  • 26
Article Number 04FFS-SP-TF
Number Of Contacts 4
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 1.25mm Pitch Non-ZIF Connector For FFC
Connection Type Printed Circuit Board Connectors
Pitch / Style 1.25 mm
Rated Current (ac/dc) 0.5 A
Rated Voltage (ac/dc) 50 V
Pcb Mount Style Surface Mount Technology (SMT)
Eigenschappen verschillen tussen varianten en subvarianten

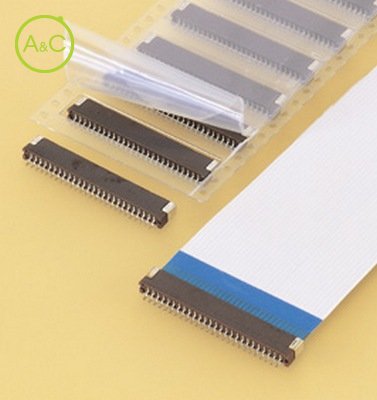

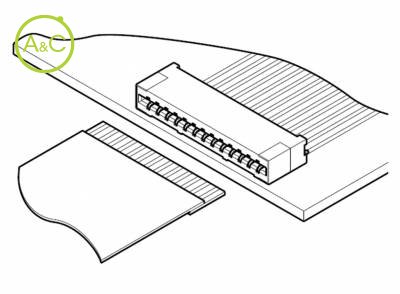

The FFC series connectors are designed for surface mounting (SMT) and to meet the demand for high-density packaging. They are miniature connectors with a height of only 2.8mm (.110"). Their high contact pressure eliminates fretting corrosion and ensures secure connections. Low insertion force make connection easy. Surface mountable (SMT) Because of it's small pitch and it's ability to be surface mounted, this connector meets the demand for high-density packaging. Double-leaf contact mating enhances reliability through redundancy The contact is made of phosphor bronze that maintains it's spring force in adverse environmental conditions. FFC leads can be inserted with little force, yet the contact pressure is high once they are inserted. Low profile design This connector is very small with a mounting height of only 2.8mm (.110"). Simple snap-in action The FFC is securely connected by simply inserting it's leads into the connector. Embossed tape for automatic mounting The FFS connector is supplied packaged in embossed tape for automatic mounting. Solder tabs This connector also features reinforcing solder tabs to prevent lifting of the connector during mating and unmating. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
