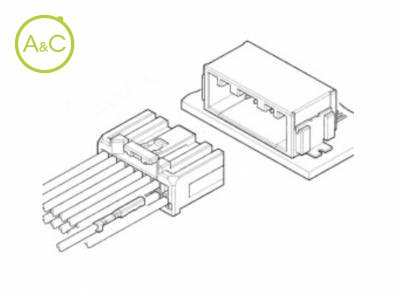

Female Connector Single Row for CPT Connector

  • CPT CONNECTOR
Download product sheet

Number Of Poles

  • 8
  • 12
  • 16
  • 20
Article Number 08CPT-B-2A
Number Of Contacts 8
Upper Temperature +100 °C
Lower Temperature -40 °C
General Description 2mm Pitch Disconnectable Crimp Style
Connection Type Automotive
Pitch / Style 2.00 mm
Rated Current (ac/dc) 3 (0.3mm2, Single Circuit) A
Rated Voltage (ac/dc) 50 V
Pcb Mount Style Through-hole Technology (THT)
Eigenschappen verschillen tussen varianten en subvarianten
Developed in pursuit of miniaturization and low profile as PC board connector for automobile. This connector is surface mounting type, having the spring structure on male terminal disproving the conventional concept. Compact design 2.0mm (.079") pitch is realized miniaturization and low profile as the connector for automobile. Terminal construction Female terminal is designed for simple box structure by having spring structure on male terminal. RoHS Compliant
