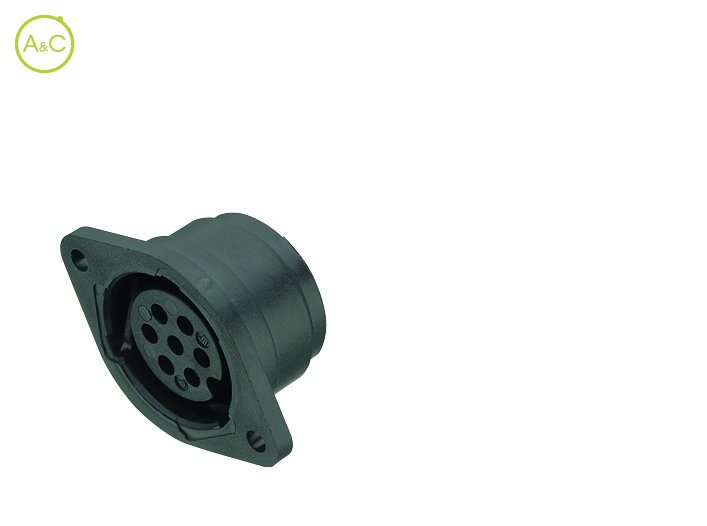

Female panel mount connector

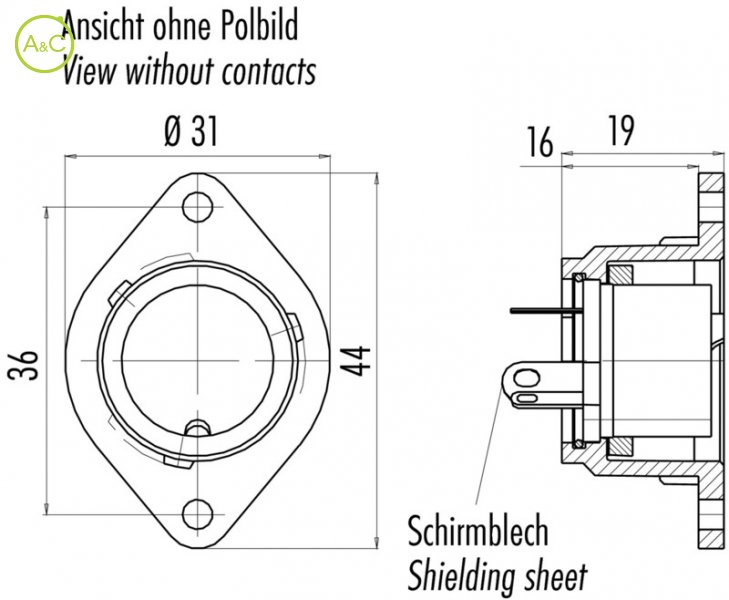

  • With shielding sheet

Number Of Poles

  • 3
  • 5
  • 7
Article Number 09 0058 70 03
Connector Diameter 29 mm
Number Of Contacts 3 contacts
Connector Locking System Bayonet
Termination Solder
Wire Section 2.5 mm²
Protection Degree IP40
Mating Cycles >500 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 250
Rated Impuls Voltage 2500 V
Pollution Degree 1
Overvoltage Categorie II
Material Group III
Rated Current (40°) 10 A
Max. Contact Resistance 5 mΩ
Material Of Contact CuSn (Bronze)
Plating Ag (Silver)
Material Of Insert PBT (UL 94 V-0)
Material Of Housing PBT (UL 94 V-0)
Product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
