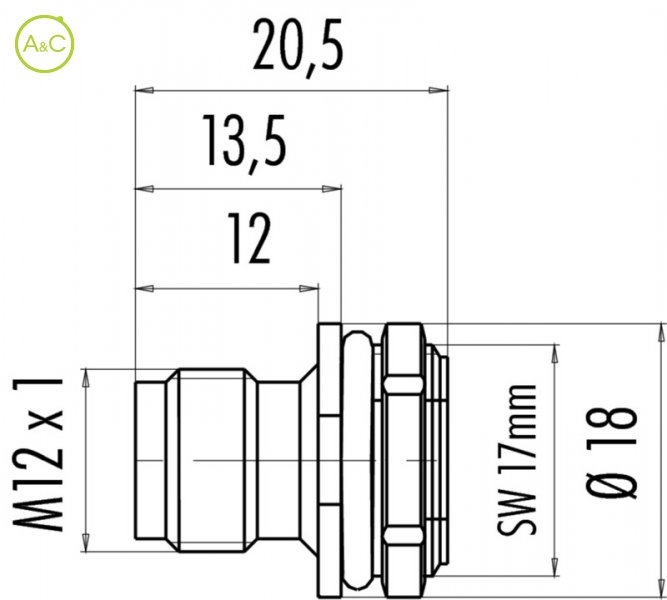

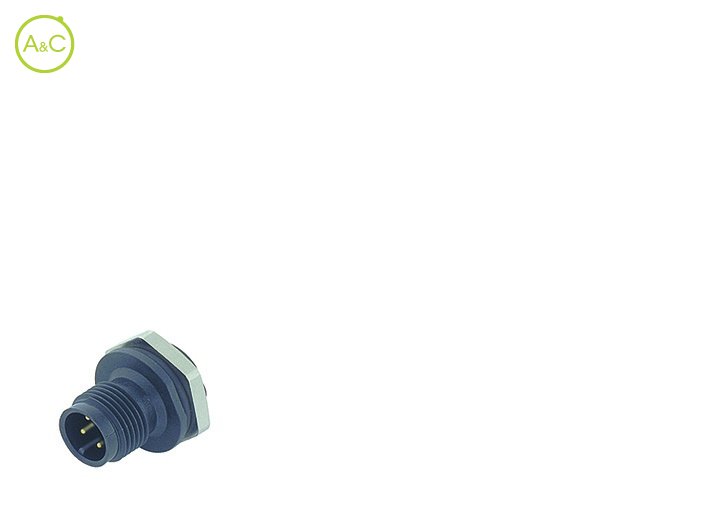

Male panel mount connector

  • Fixing thread

Number Of Poles

  • 4
  • 5
Article Number 09 0431 160 04 09 0431 390 04
Connector Diameter 18 mm 18 mm
Number Of Contacts 4 contacts 4 contacts
Connector Locking System Screw (M12-B) Screw (M12-B)
Termination Solder Solder
Wire Section 0.25 mm² 0.25 mm²
Protection Degree IP67 IP67
Mating Cycles >100 times >100 times
Upper Temperature +85 °C +85 °C
Lower Temperature -40 °C -40 °C
Rated Voltage 250 250
Rated Impuls Voltage 2500 V 2500 V
Pollution Degree 3 3
Overvoltage Categorie II II
Material Group III III
Rated Current (40°) 4 A 4 A
Max. Contact Resistance 3 mΩ 3 mΩ
Material Of Contact CuZn (Brass) CuZn (Brass)
Plating Au (Gold) Au (Gold)
Material Of Insert PA PA
Product sheet Download product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
