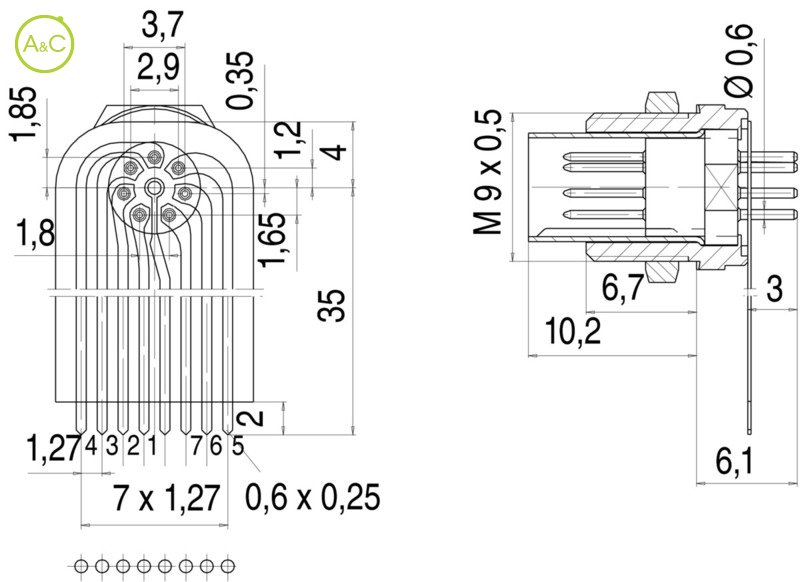

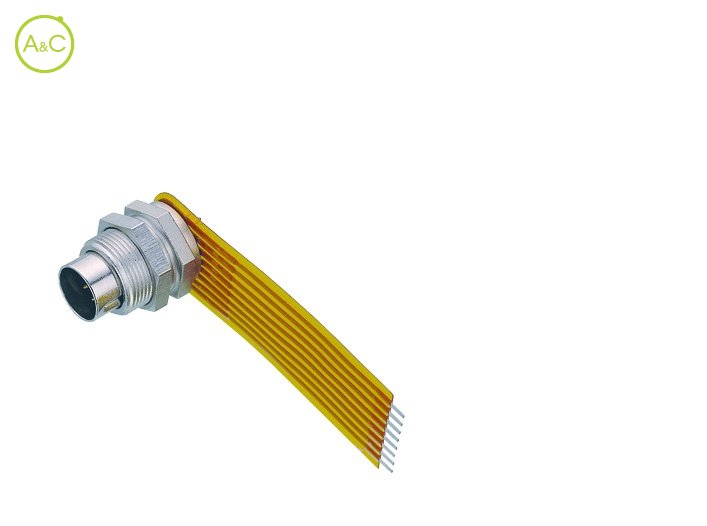

Male panel mount connector

  • With flexible PCB

Number Of Poles

  • 7
  • 8
Article Number 09 0477 65 07
Connector Diameter 11.5 mm
Number Of Contacts 7 contacts
Connector Locking System Screw (M9)
Termination Solder
Protection Degree IP40
Mating Cycles >500 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 125
Rated Impuls Voltage 1500 V
Pollution Degree 1
Overvoltage Categorie II
Material Group III
Rated Current (40°) 1 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PA (UL 94 V-0)
Material Of Housing CuZn (Brass nickel plated)
Product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
