Binder
Number Of Poles
- 4

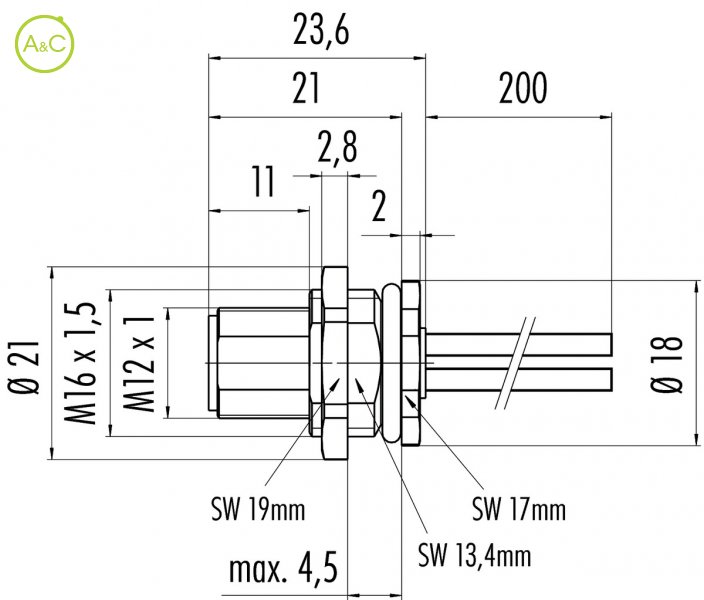

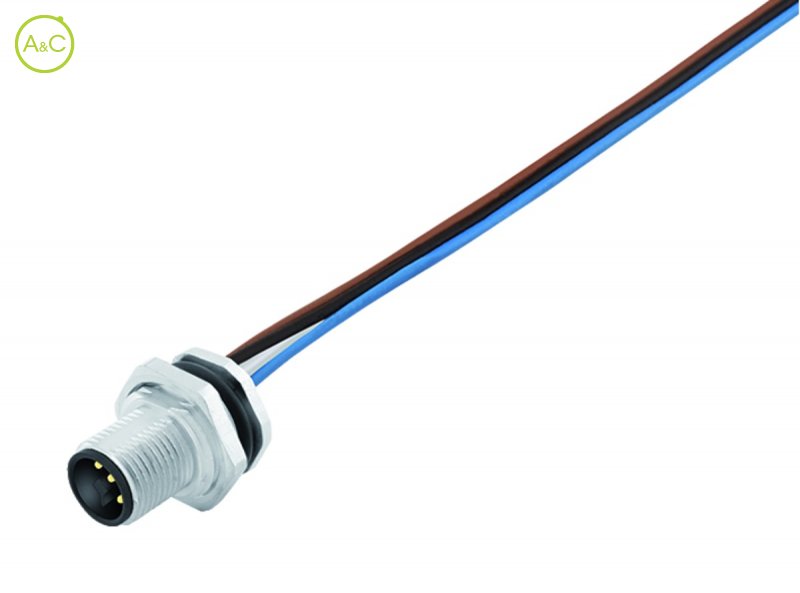

| Article Number | 09 0631 120 04 |
| Connector Diameter | 21 mm |
| Number Of Contacts | 4 contacts |
| Connector Locking System | Screw(M12-T) |
| Termination | Single wires |
| Wire Section | 1.5 mm² |
| Protection Degree | IP67 |
| Mating Cycles | >100 times |
| Upper Temperature | +85 °C |
| Lower Temperature | -40 °C |
| Rated Voltage | 63 |
| Rated Impuls Voltage | 1500 V |
| Pollution Degree | 3 |
| Overvoltage Categorie | III |
| Material Group | III |
| Rated Current (40°) | 12 A |
| Max. Contact Resistance | 3 mΩ |
| Material Of Contact | CuZn (Brass) |
| Plating | Au (Gold) |
| Material Of Insert | PA |
| Material Of Housing | Zinc diecasting nickel plated |
| Fixing Thread | M16 x 1,5 |
| Product sheet | Download product sheet |
Eigenschappen verschillen tussen varianten en subvarianten
