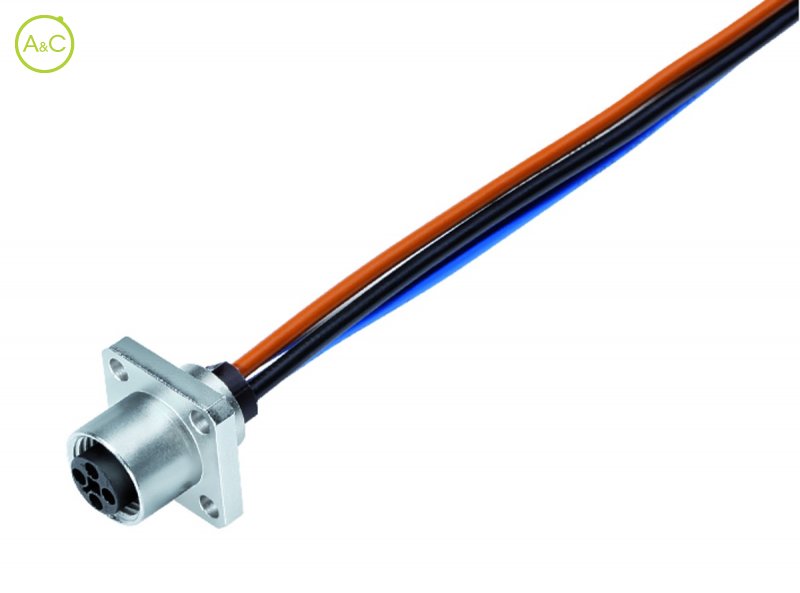

Female panel mount connector

  • Square flange
  • UL-approval

Number Of Poles

  • 4
Article Number 09 0632 070 04
Number Of Contacts 4 contacts
Connector Locking System Screw (M12-T)
Termination Single wires
Protection Degree IP67
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 63
Rated Impuls Voltage 1500 V
Pollution Degree 3
Overvoltage Categorie III
Material Group III
Rated Current (40°) 12 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuSn (Bronze)
Plating Au (Gold)
Material Of Insert PA
Product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
