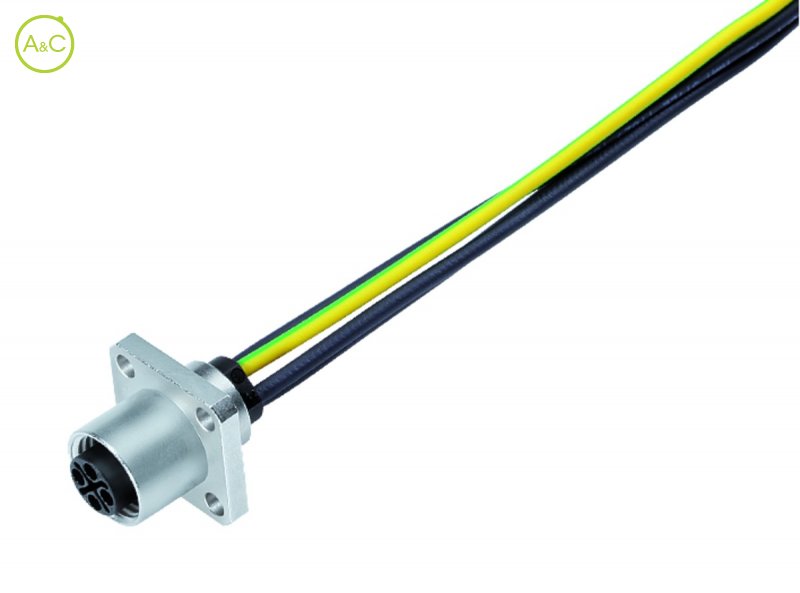

Female panel mount connector

  • Square flange
  • UL-approval

Number Of Poles

  • 3+PE
Article Number 09 0692 070 04
Number Of Contacts 3+PE contacts
Connector Locking System Screw (M12-S)
Termination Single wires
Protection Degree IP67
Mating Cycles >50 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 630
Rated Impuls Voltage 6000 V
Pollution Degree 3
Overvoltage Categorie III
Material Group III
Rated Current (40°) 12 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuSn (Bronze)
Plating Au (Gold)
Material Of Insert PA
Material Of Housing PA
Product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
