Binder
Number Of Poles
- 8

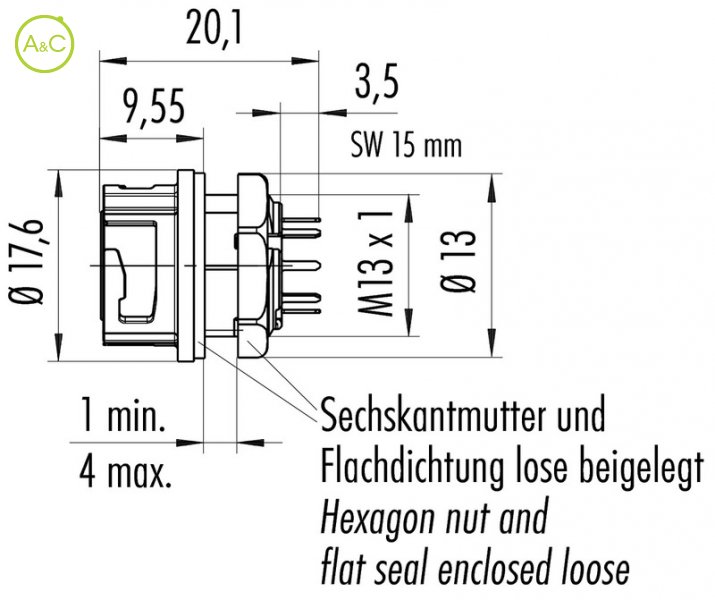

| Article Number | 09 0774 090 08 |
| Connector Diameter | 17.6 mm |
| Number Of Contacts | 8 contacts |
| Connector Locking System | Bayonet |
| Termination | Dip solder |
| Wire Section | 0.25 mm² |
| Protection Degree | IP67 (also when not connected) |
| Mating Cycles | >5000 times |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| Rated Voltage | 175 |
| Rated Impuls Voltage | 1750 V |
| Pollution Degree | 2 |
| Overvoltage Categorie | II |
| Material Group | II |
| Rated Current (40°) | 2 A |
| Max. Contact Resistance | 15 mΩ |
| Material Of Contact | CuSn (Bronze) |
| Plating | Au (Gold) |
| Material Of Insert | PA (UL 94 V-0) |
| Material Of Housing | PA (UL 94 H-B) |
| Product sheet | Download product sheet |
Eigenschappen verschillen tussen varianten en subvarianten
