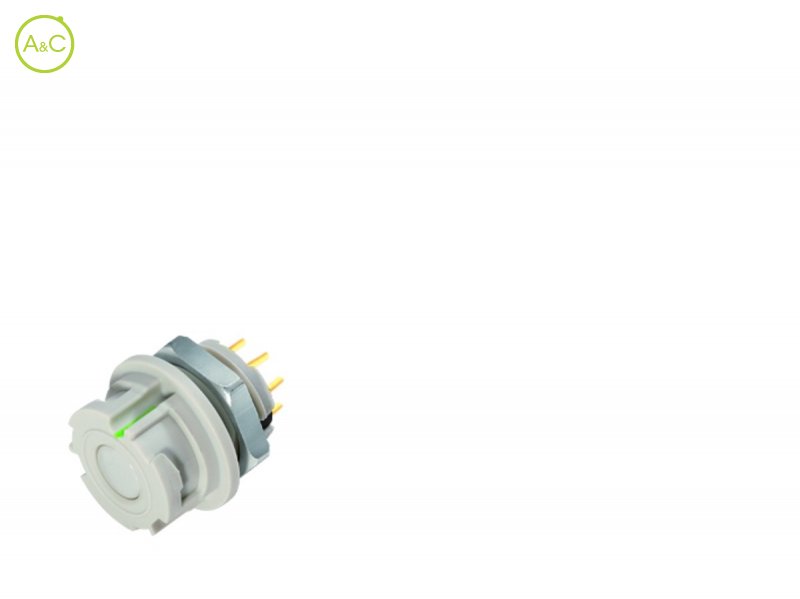

Female panel mount connector

  • Dip solder

Number Of Poles

  • 8
Article Number 09 0774 490 08

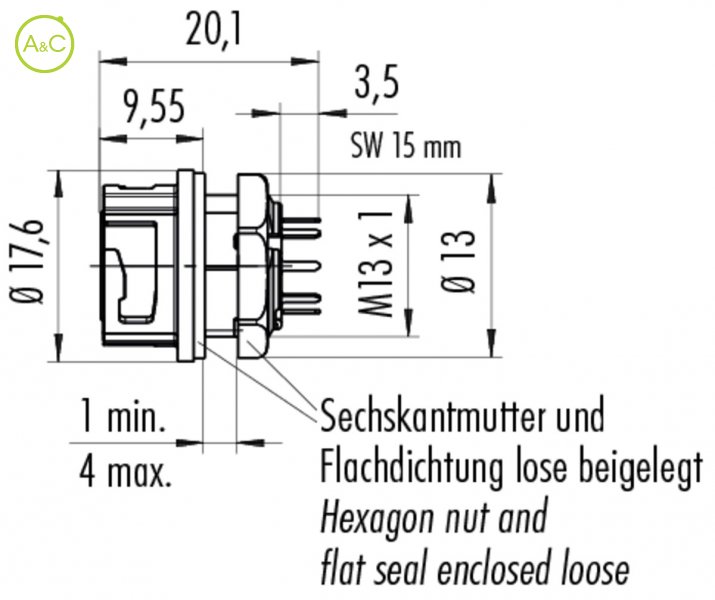

Connector Diameter 17.6 mm
Number Of Contacts 8 contacts
Connector Locking System Bayonet
Termination Solder
Wire Section 0.25 mm²
Protection Degree IP67
Upper Temperature +85 °C
Lower Temperature -25 °C
Rated Voltage 175
Rated Impuls Voltage 1750 V
Pollution Degree 2
Overvoltage Categorie II
Material Group II
Rated Current (40°) 2 A
Max. Contact Resistance 15 mΩ
Material Of Contact CuSn (Bronze)
Plating Au (Gold)
Material Of Insert PA (UL 94 V-0)
Material Of Housing PA (UL 94 H-B)
Product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
