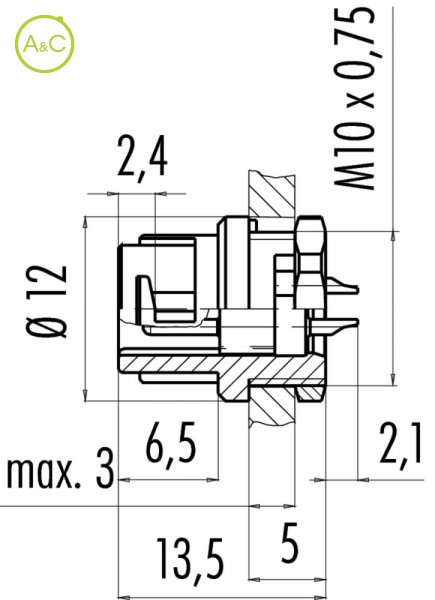

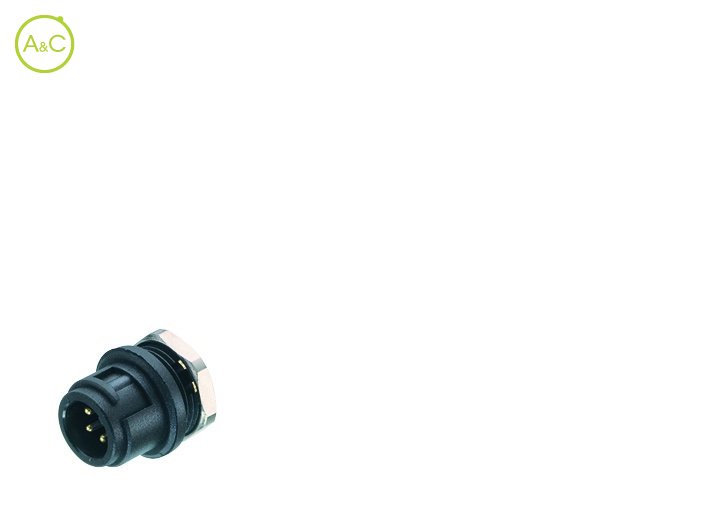

Male panel mount connector

09-0973-00-02

09-0973-00-02

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Meer info over dit merk:

Number Of Poles

2
3
4
5
7
8

Article Number	09 0973 00 02
Connector Diameter	12 mm
Number Of Contacts	2 contacts
Connector Locking System	Bayonet
Termination	Solder
Wire Section	0.25 mm²
Protection Degree	IP40
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	1
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	4 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA (UL 94 V-0)
Material Of Housing	PA (UL 94 HB)
Product sheet	Download product sheet

Article Number	09 0977 00 03
Connector Diameter	12 mm
Number Of Contacts	3 contacts
Connector Locking System	Bayonet
Termination	Solder
Wire Section	0.25 mm²
Protection Degree	IP40
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	1
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	4 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA (UL 94 V-0)
Material Of Housing	PA (UL 94 HB)
Product sheet	Download product sheet

Article Number	09 0981 00 04
Connector Diameter	12 mm
Number Of Contacts	4 contacts
Connector Locking System	Bayonet
Termination	Solder
Wire Section	0.25 mm²
Protection Degree	IP40
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	1
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	3 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA (UL 94 V-0)
Material Of Housing	PA (UL 94 HB)
Product sheet	Download product sheet

Article Number	09 0997 00 05
Connector Diameter	12 mm
Number Of Contacts	5 contacts
Connector Locking System	Bayonet
Termination	Solder
Wire Section	0.25 mm²
Protection Degree	IP40
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	1
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	3 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA (UL 94 V-0)
Material Of Housing	PA (UL 94 HB)
Product sheet	Download product sheet

Article Number	09 9477 00 07
Connector Diameter	12 mm
Number Of Contacts	7 contacts
Connector Locking System	Bayonet
Termination	Solder
Wire Section	0.14 mm²
Protection Degree	IP40
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	1
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	1 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA (UL 94 V-0)
Material Of Housing	PA (UL 94 HB)
Product sheet	Download product sheet

Article Number	09 9481 00 08
Connector Diameter	12 mm
Number Of Contacts	8 contacts
Connector Locking System	Bayonet
Termination	Solder
Wire Section	0.14 mm²
Protection Degree	IP40
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	1
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	1 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA (UL 94 V-0)
Material Of Housing	PA (UL 94 HB)
Product sheet	Download product sheet

Eigenschappen verschillen tussen varianten en subvarianten
